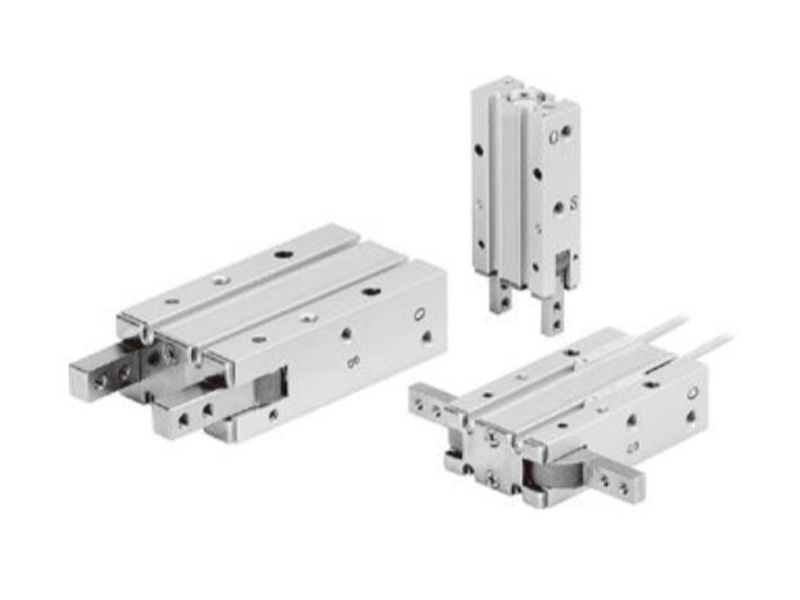

规格参数
| 缸径(mm) | 10 | 16 | 20 | 25 |
| 动作方式 | 双作用 | |||
| 使用流体 | 空气 | |||
| 最高使用压力(Mpa){kgf/cm²} | 0.6{6.1} | |||
| 最低使用压力(Mpa){kgf/cm²} | 0.15{1.5} | 0.1{1.0} | ||
| 环境及流体使用温度 | -10-60℃(未冻结) | |||
| 最高使用频度(c.p.m) | 60 | |||
| 重复精度(mm) | ±0.2 | |||
| 保持力(N){kg} | 0.16{1.6} | 0.54{5.5} | 1.10{11.2} | 2.28{23.3} |
| 重量(g) | 70 | 150 | 320 | 560 |
| 润滑 | 不需要 | |||
| 接管口径 | M5×0.8 | |||
[注]在0.5 Mpa(kgf/cm²}]的压力情况下。

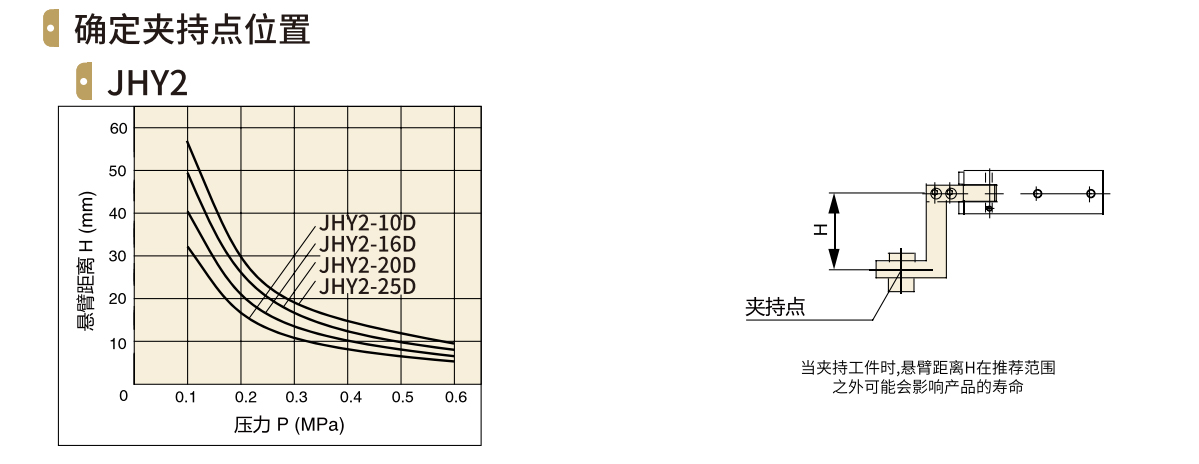

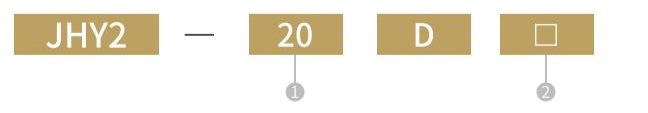

订购码
| ① | ②夹爪 | |
| 缸径 | 无标识 | 螺纹 |
| 2 | 通孔 | |
[注]感应器型号具体订购码请参照P173

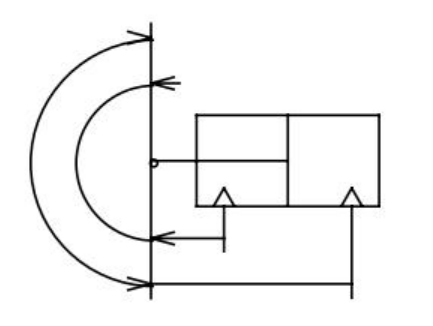

符号
外形尺寸
JHY2-_D
| 尺寸 | CG |
| 10 | 3.4 |
| 16 | 3.4 |
| 20 | 4.5 |
| 25 | 5.5 |
[注]其他尺寸请参照左表
| 尺寸 | A | AA | AB | AC | AD | AE | AF | AG | AH | Al | AJ | AK | B | BA | BB | BC | BD | BE | BF | BG | BH | BI | BJ | BK |
| 10 | 47.5 | 58 | 2 | 35 | 18 | 4 | 6 | 15 | 9 | 30 | 23 | 7 | 24 | 22 | 23.5 | 12 | 6 | 3 | 30 | 24 | 9 | 4 | 9 | 3 |
| 16 | 55.5 | 69 | 2.5 | 41 | 20 | 5 | 8 | 20 | 12 | 33 | 25 | 7 | 30 | 28 | 28.5 | 14 | 7 | 4 | 38 | 30 | 15 | 4 | 12 | 8 |
| 20 | 69 | 86 | 4 | 50 | 25 | 8 | 10 | 26 | 16 | 42 | 32 | 8 | 36 | 36 | 37 | 18 | 9 | 5 | 48 | 38 | 19 | 5 | 14 | 12 |
| 25 | 86 | 107 | 5 | 60 | 30 | 10 | 12 | 30 | 18 | 50 | 42 | 8 | 42 | 45 | 45 | 22.5 | 12 | 6 | 58 | 46 | 23 | 5 | 16 | 14 |
| 尺寸 | C | CA | CB | CC | CD | CE | CF | CG | CH | CI | CJ | CK |
| 10 | M5×0.8 | 11+0.043 0 | 1.5 | 3+0.043 0 | 3 | M3×0.5 | 6 | M3×0.5 | M3×0.5 | 6 | 4 | 3.4 |
| 16 | M5×0.8 | 17+0.043 0 | 1.5 | 3+0.043 0 | 3 | M4×0.7 | 8 | M3×0.5 | M4×0.7 | 8 | 5 | 4.5 |
| 20 | M5×0.8 | 21+0.052 0 | 1.5 | 4+0.043 0 | 4 | M5×0.8 | 10 | M4×0.7 | M5×0.8 | 10 | 8 | 5.5 |
| 25 | M5×0.8 | 26+0.052 0 | 1.5 | 4+0.043 0 | 4 | M6×1 | 12 | M5×0.8 | M6×1 | 12 | 10 | 6.6 |
