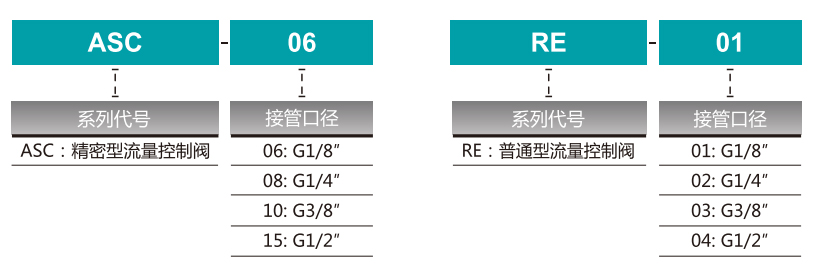

订购码

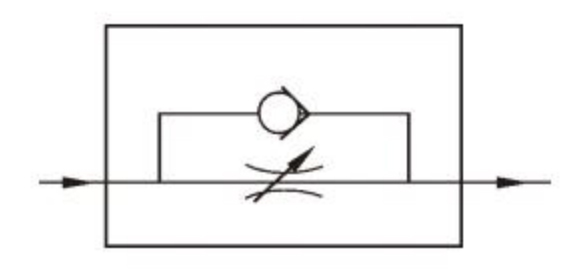

图形符号
规格参数
| 型号 | 精密型 | 普通型 | ||||||
| ASC-06 | ASC-08 | ASC-10 | ASC-15 | RE-01 | RE-02 | RE-03 | RE-04 | |
| 接管口径 | G1/8” | G1/4” | G3/8” | G1/2” | G1/8” | G1/4” | G3/8” | G1/2” |
| 工作介质 | 空气 | |||||||
| 使用压力范围 | 0～0.95MPa | |||||||
| 使用温度范围 | -20～70℃ | |||||||

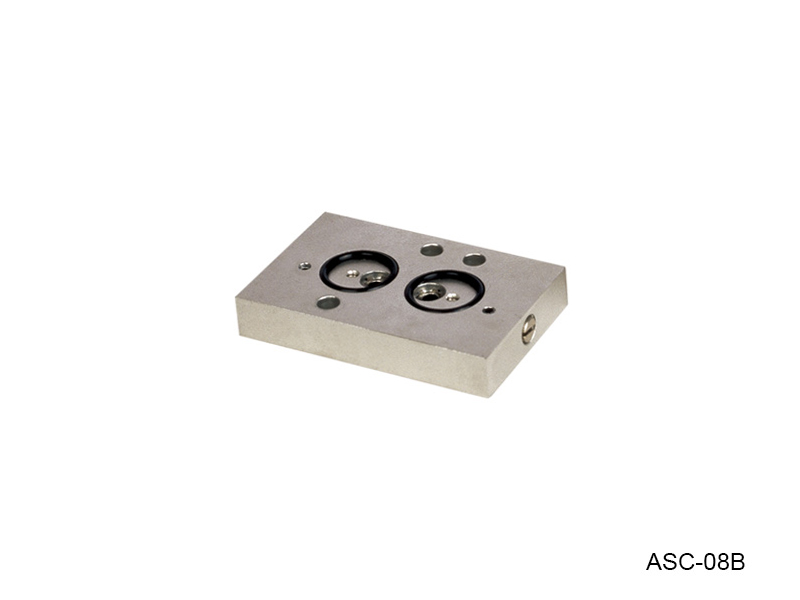

*ASC-08B安装尺寸符合NUMAR标准，用于气动执行器的速度控制。

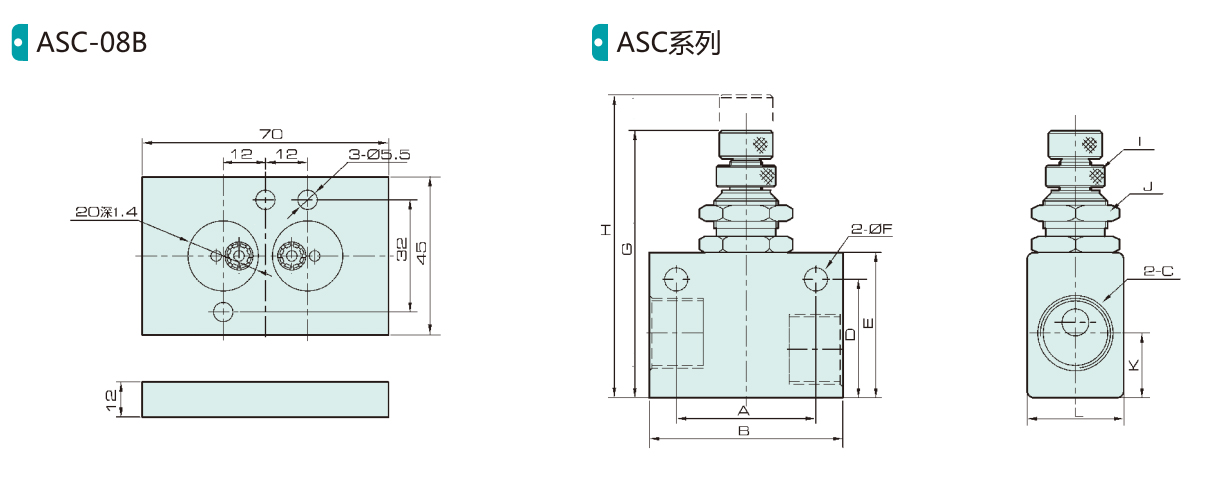

外形尺寸
尺寸表
| 型号/符号 | A | B | C | D | E | F | G | H | I | J | K | L |

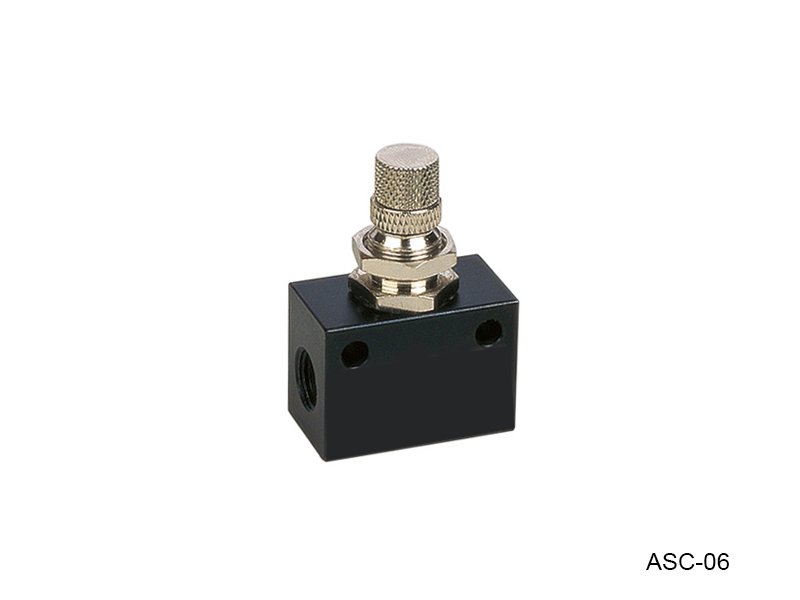

| ASC-06 | 22 | 32 | G1/8 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6X0.5 | M12X0.75 | 12 | 18 |

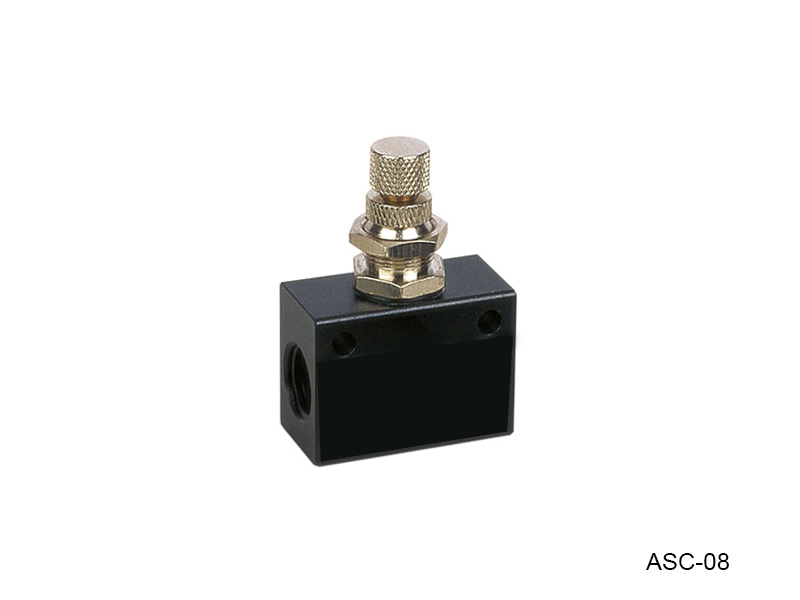

| ASC-08 | 26 | 36 | G1/4 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6X0.5 | M12X0.75 | 12 | 18 |

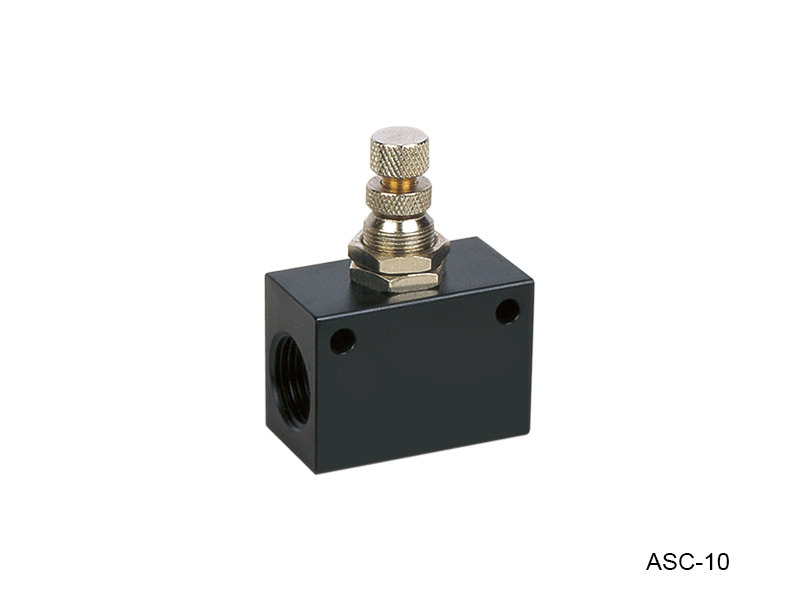

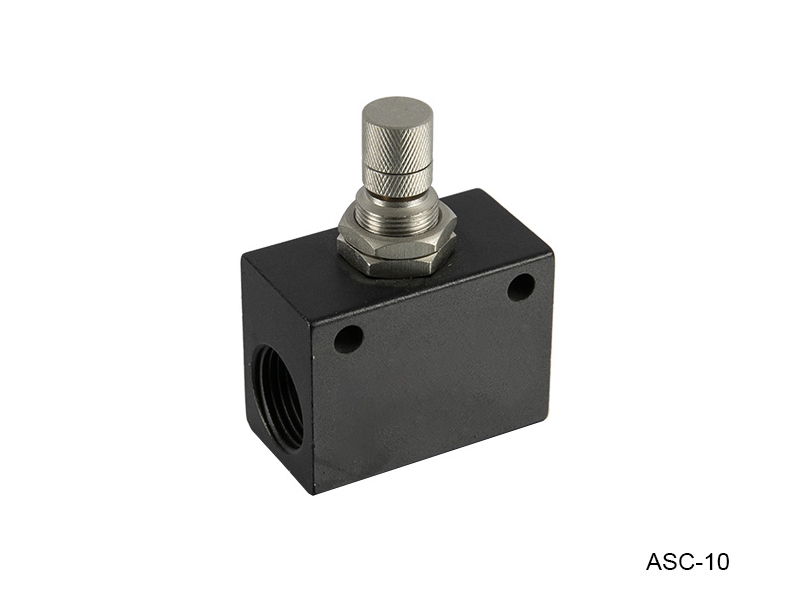

| ASC-10 | 28 | 40 | G3/8 | 25 | 30 | 4.3 | 52.7 | 59.5 | M6X0.5 | M12X0.75 | 13 | 22 |

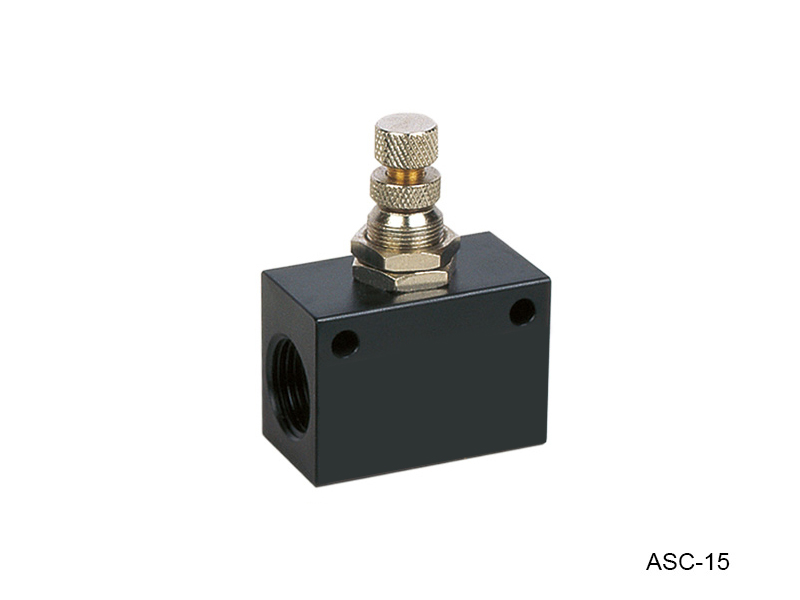

| ASC-15 | 28 | 40 | G1/2 | 30 | 35 | 4.3 | 58.7 | 65.5 | M6X0.5 | M12X0.75 | 13.5 | 26 |

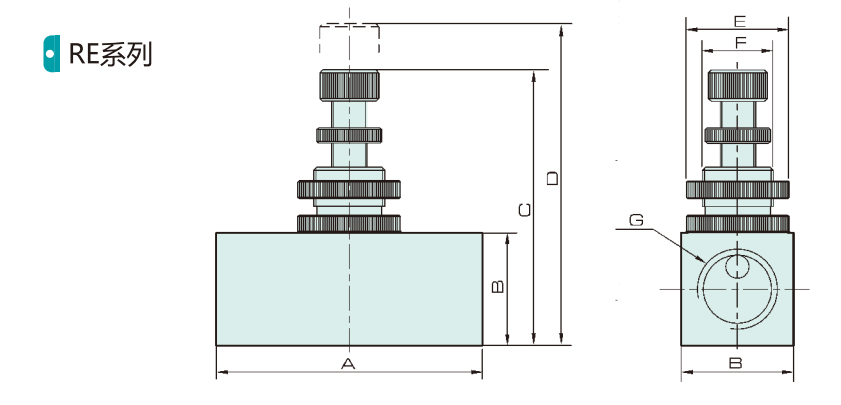

外形尺寸
尺寸
| 型号/符号 | A | B | C | D | E | F | G |

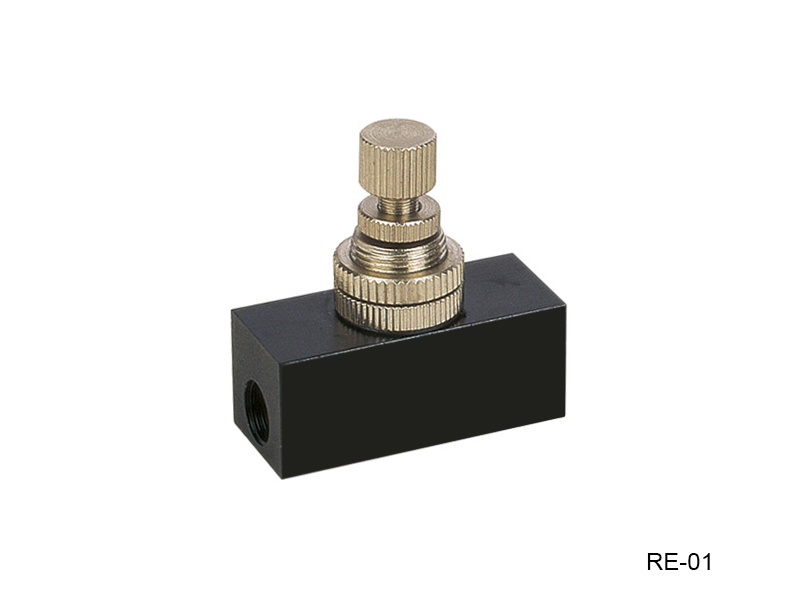

| RE-01 | 43 | 20 | 48.5 | 52 | ∅19 | M14x1 | G1/8 |

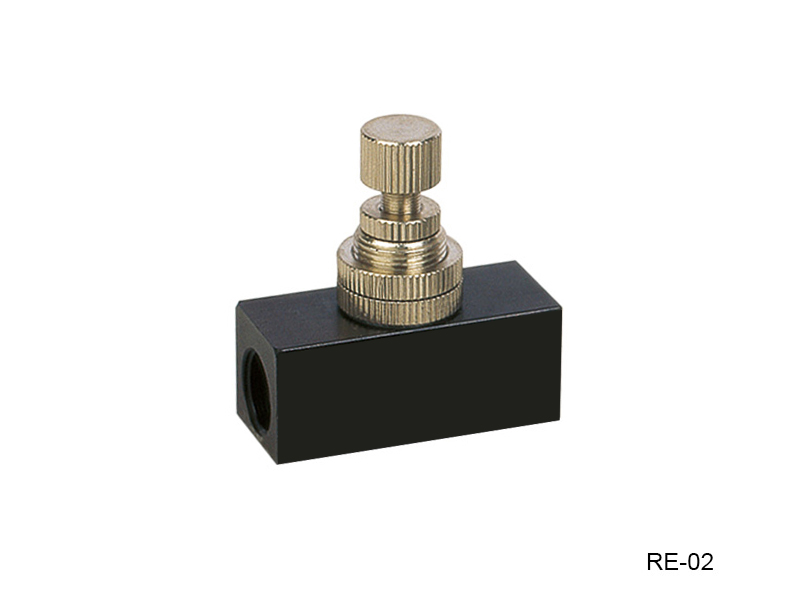

| RE-02 | 43 | 20 | 48.5 | 52 | ∅19 | M14x1 | G1/4 |

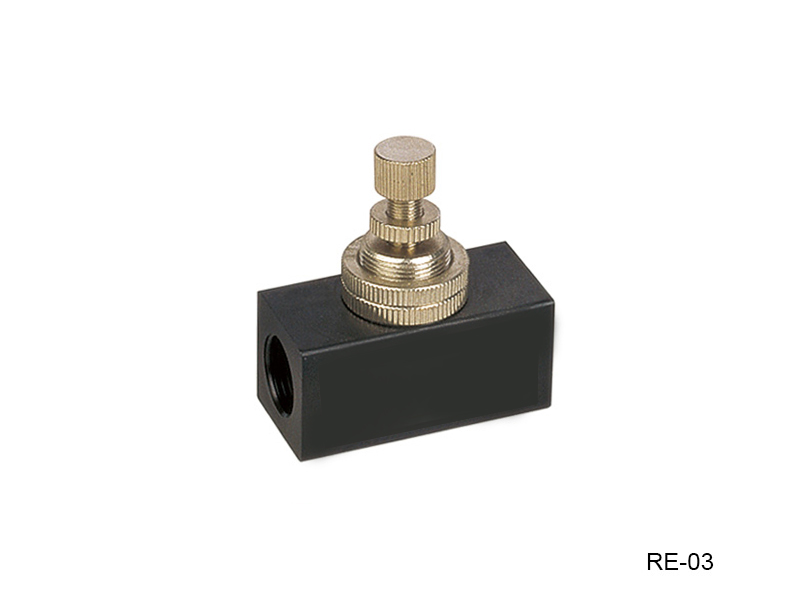

| RE-03 | 53 | 26 | 54.5 | 61.5 | ∅25 | M18x1 | G3/8 |

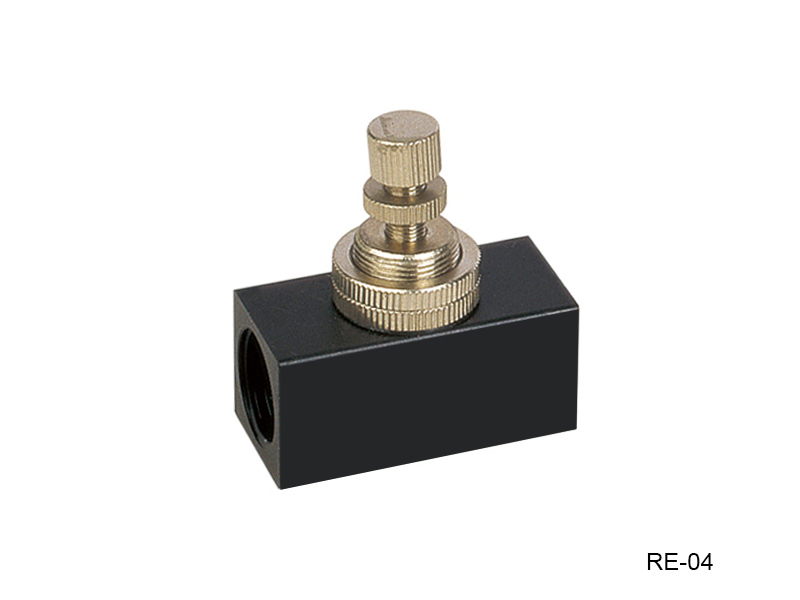

| RE-04 | 53 | 26 | 54.5 | 61.5 | ∅25 | M18x1 | G1/2 |
