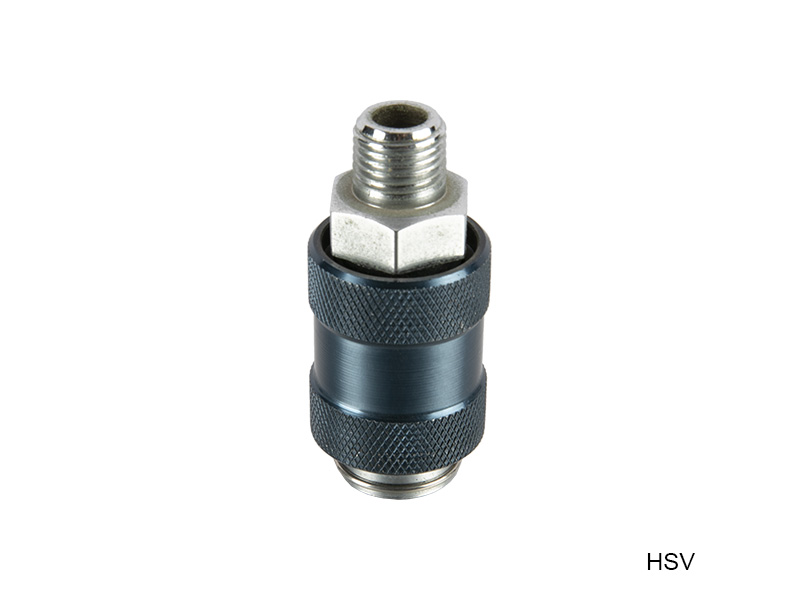

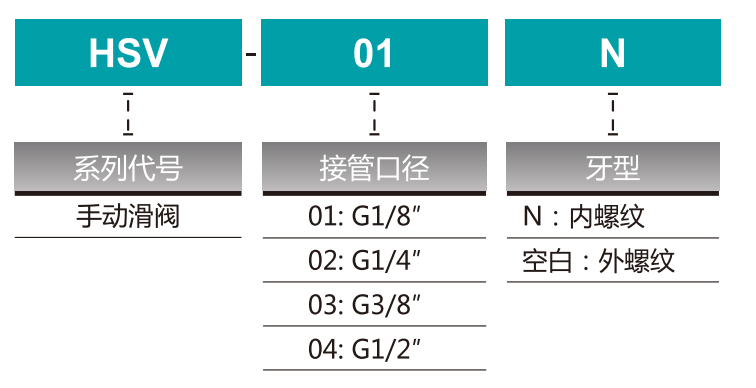

订购码

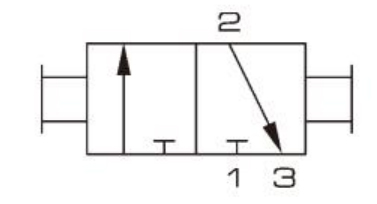

图形符号
规格参数
| 型号 | HSV-01 | HSV-02 | HSV-03 | HSV-04 |
| 接管口径 | G1/8” | G1/4” | G3/8” | G1/2” |
| 通径 | 4mm | 7mm | 10mm | 12mm |
| 工作介质 | 经过滤的压缩空气 | |||
| 工作压力 | 0~1.0MPa | |||
| 环境温度 | -20～70℃ | |||
| 操作力 | 20N | |||

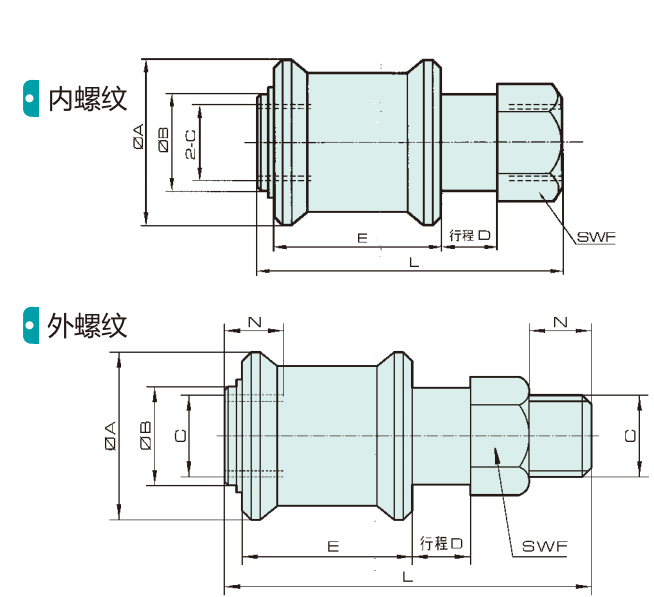

外形尺寸
尺寸表
| 型号/符号 |
A |
B |
C |
D |
E |
F |
L |
|
HSV-01N |
20 |
13 |
G1/8 |
5.5 |
20 |
14 |
32 |
|
HSV-02N |
27 |
18 |
G1/4 |
9.5 |
32 |
19 |
48 |
|
HSV-03N |
30 |
21 |
G3/8 |
9.5 |
32 |
22 |
48 |
|
HSV-04N |
38 |
24 |
G1/2 |
17 |
40 |
27 |
70 |
| 型号/符号 |
A |
B |
C |
D |
E |
F |
N |
L |
|
HSV-01 |
20 |
13 |
G1/8 |
5.5 |
20 |
14 |
6 |
38 |
|
HSV-02 |
27 |
18 |
G1/4 |
9.5 |
32 |
19 |
10 |
58 |
|
HSV-03 |
30 |
21 |
G3/8 |
9.5 |
32 |
22 |
10 |
58 |
|
HSV-04 |
38 |
24 |
G1/2 |
17 |
40 |
27 |
10 |
80 |
