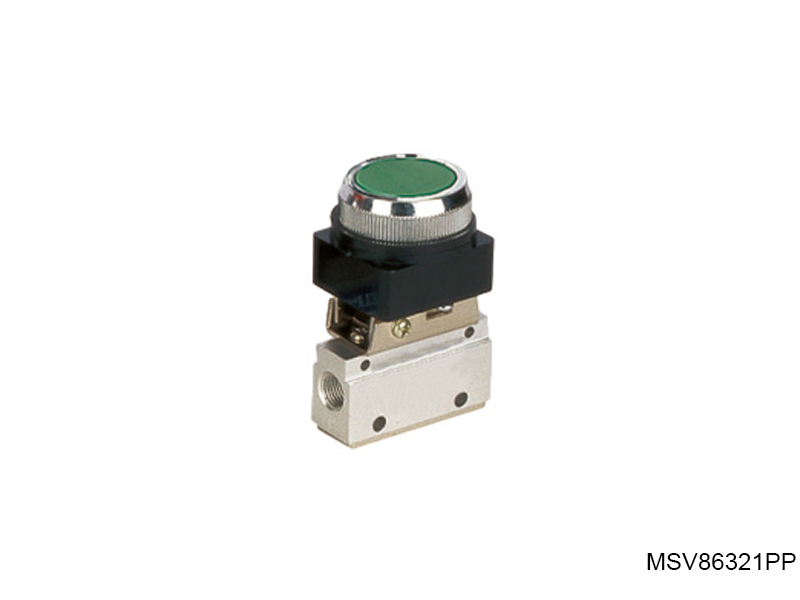

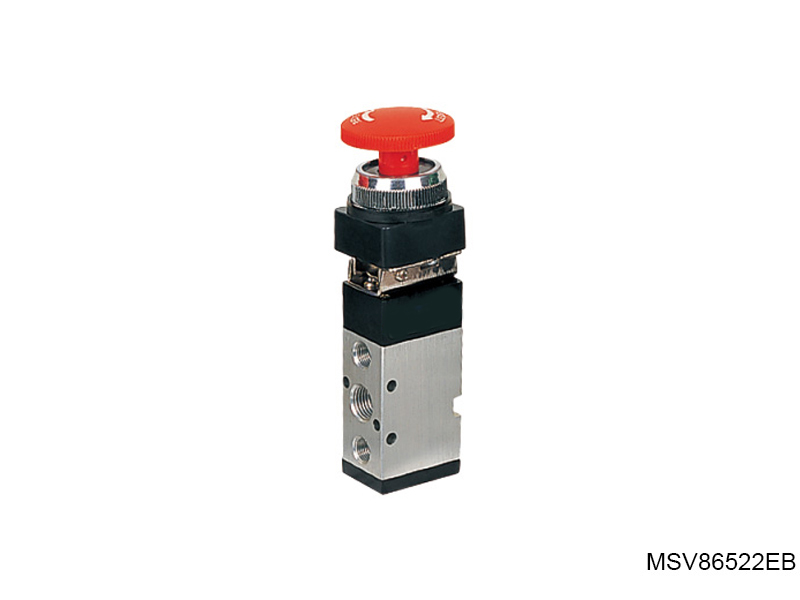

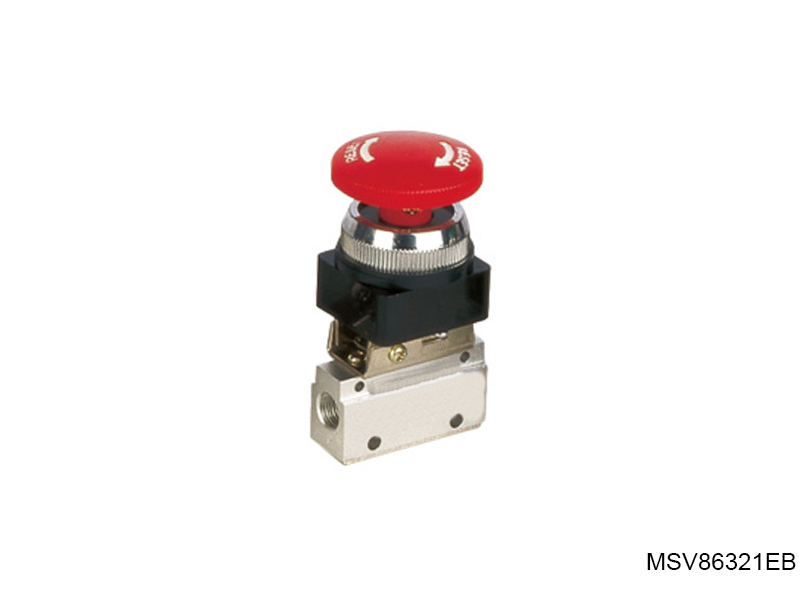

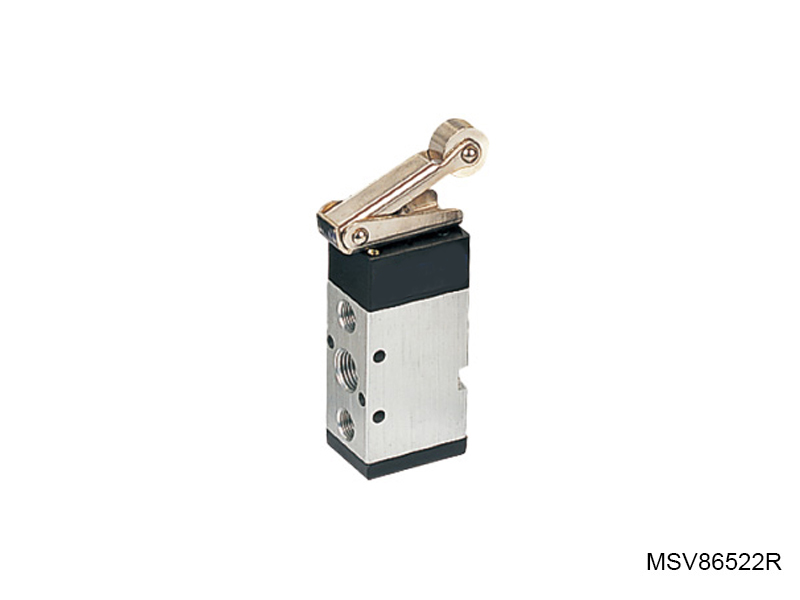

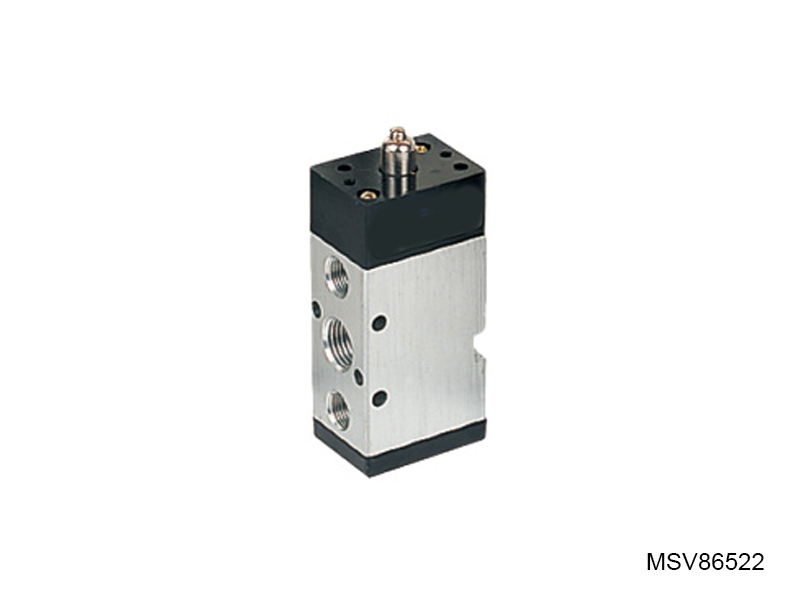

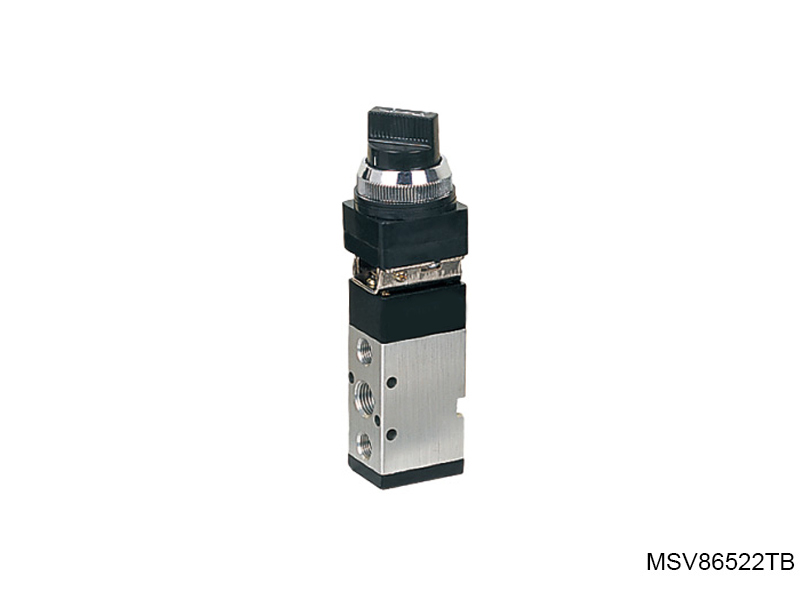

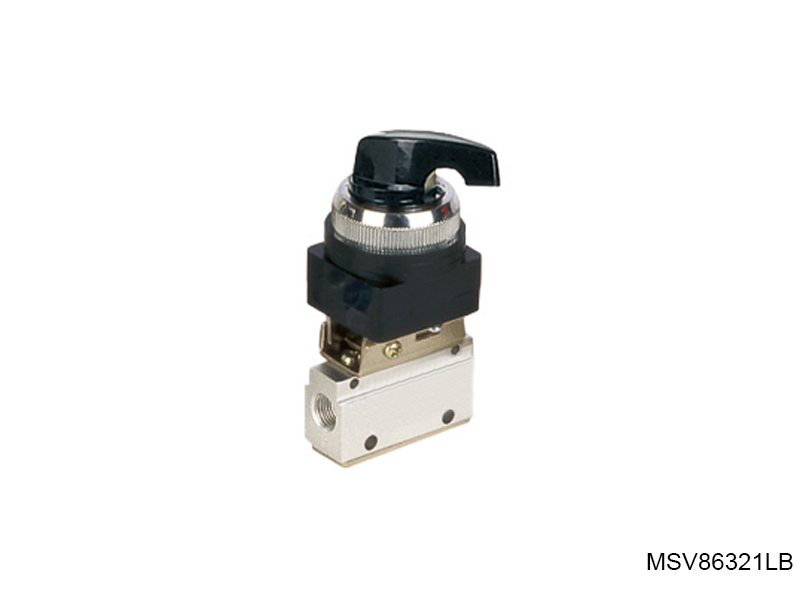

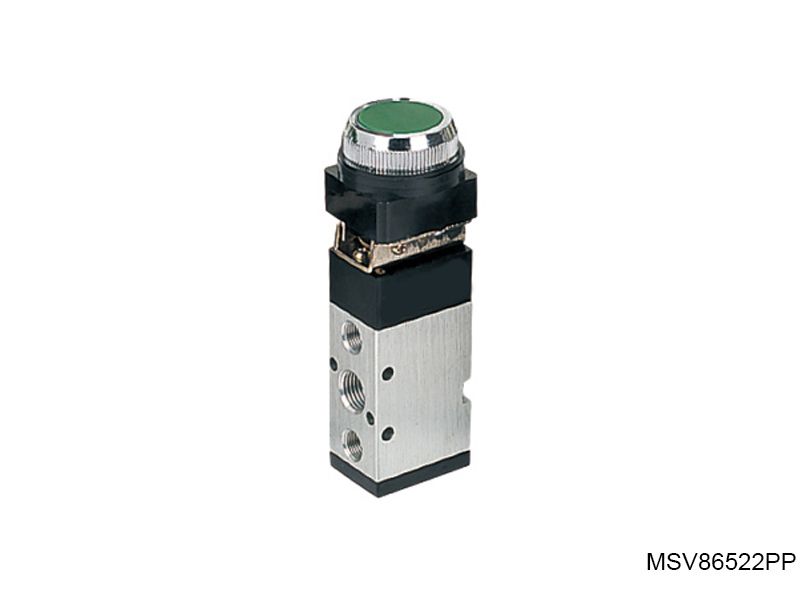

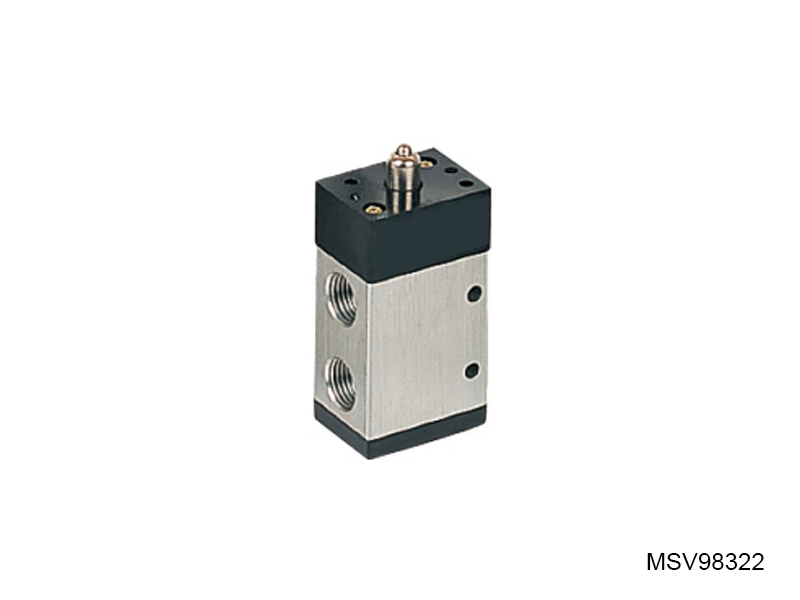

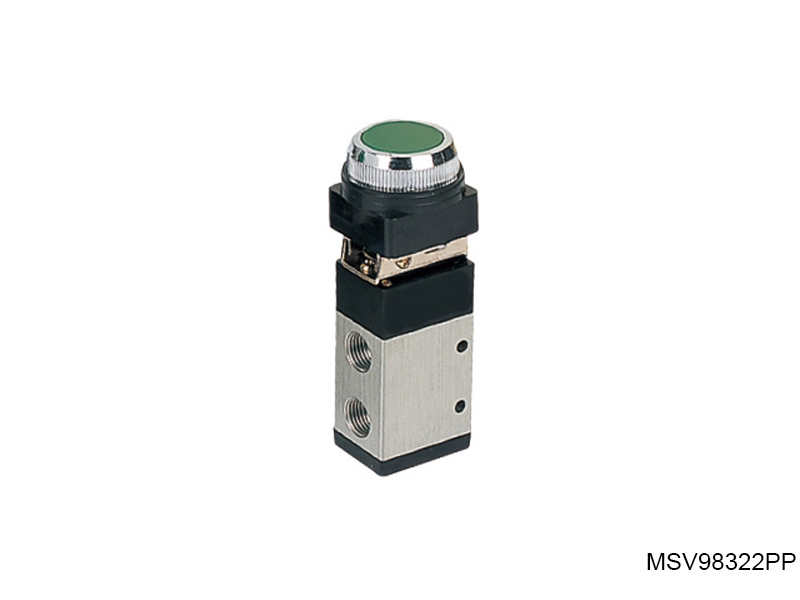

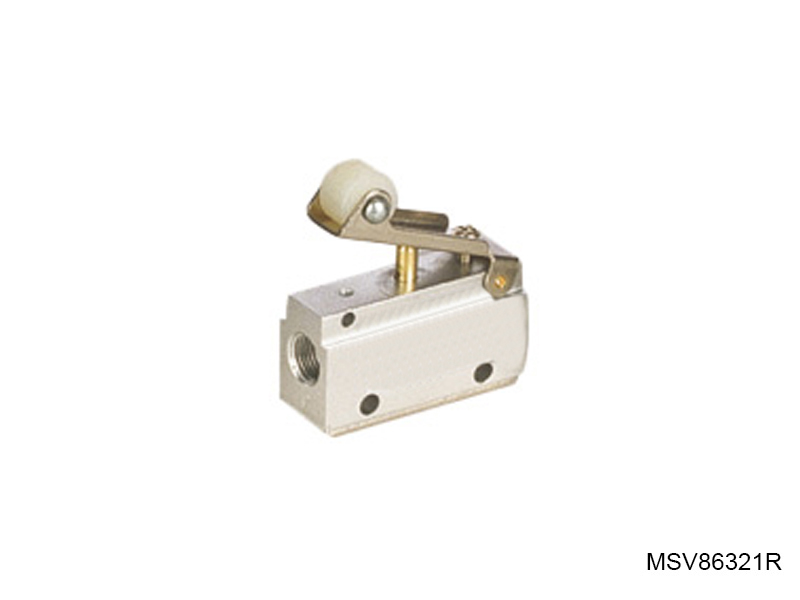

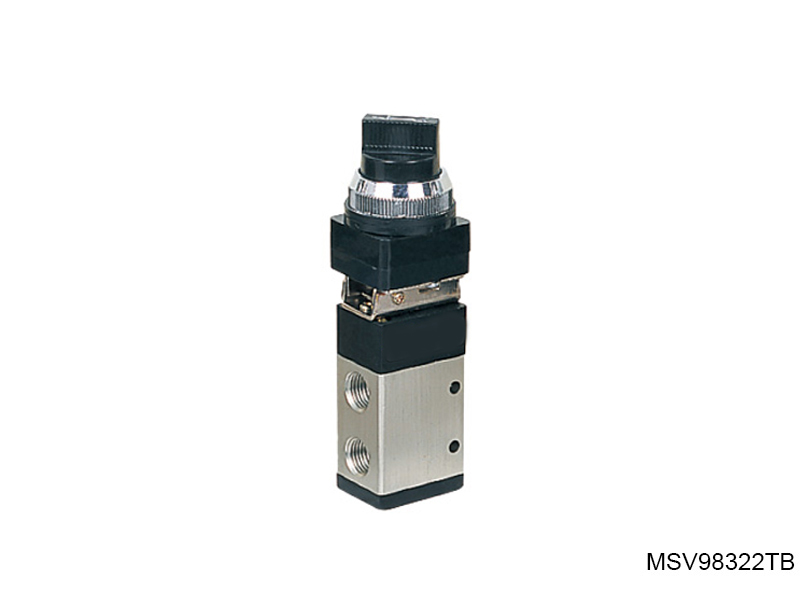

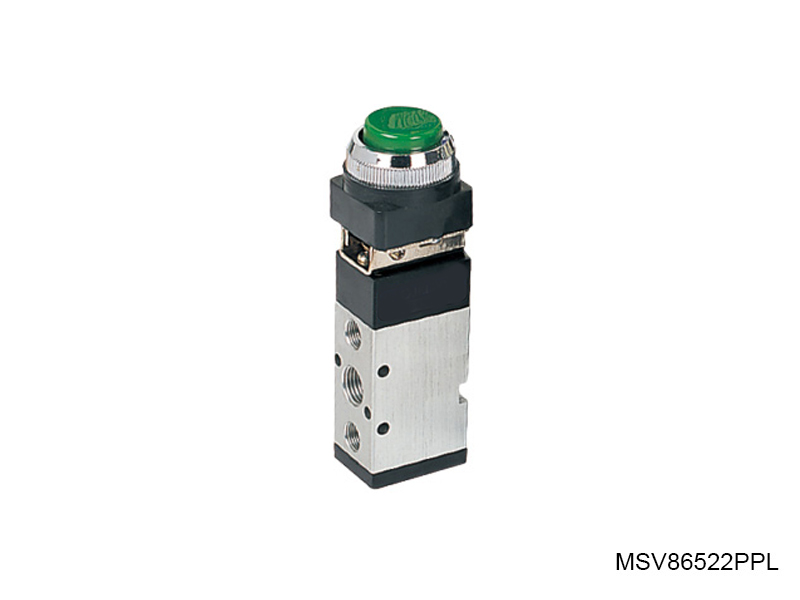

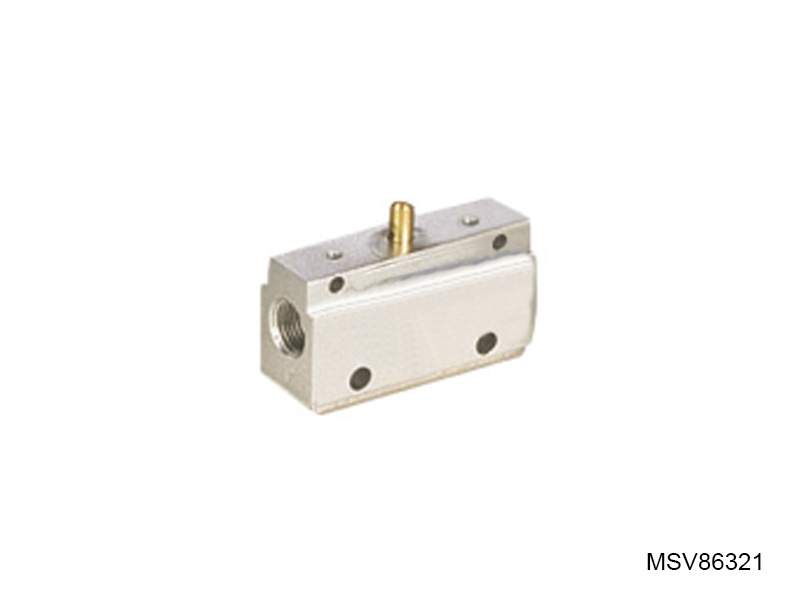

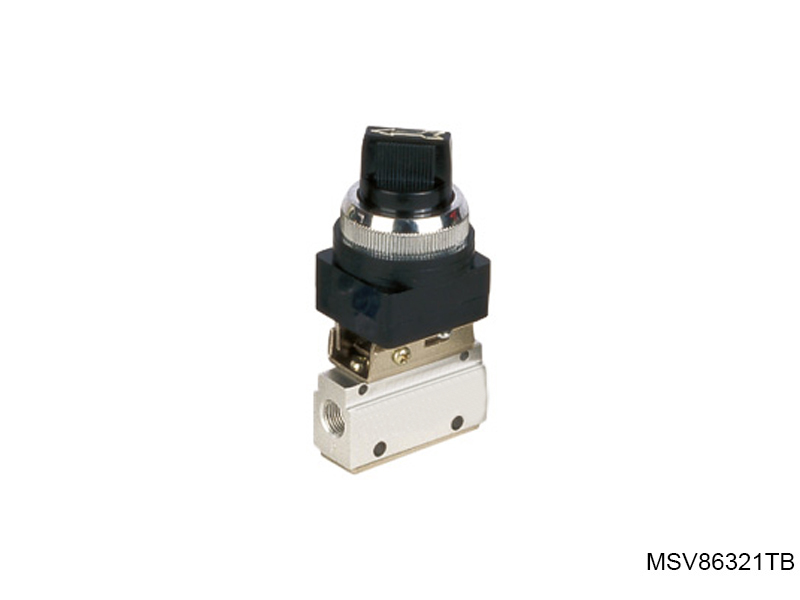

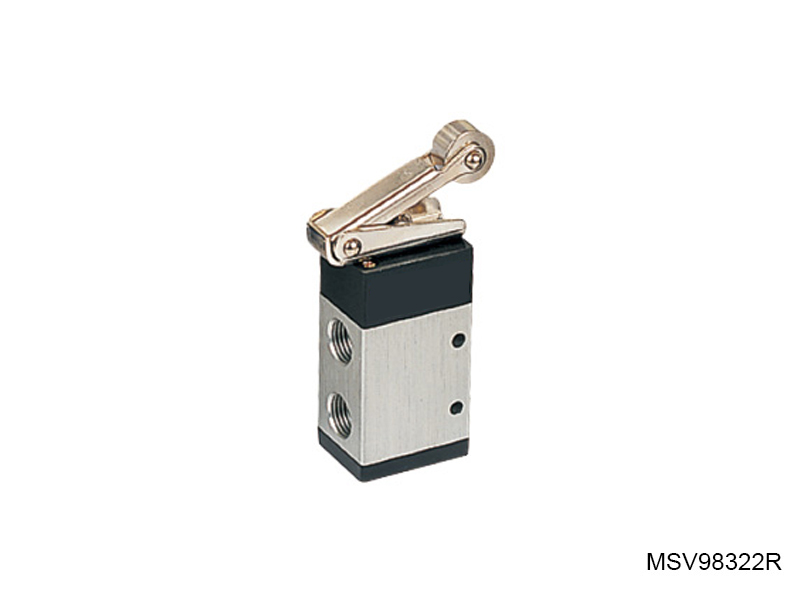

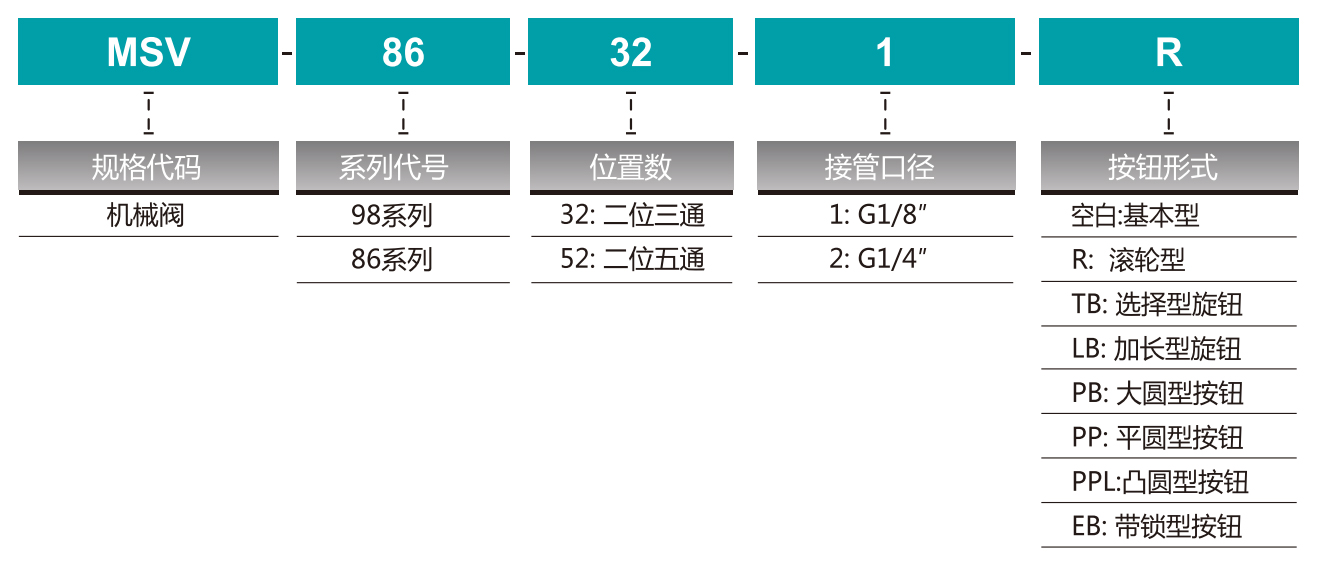

订购码
规格参数
| 型号 | MSV86321 | MSV86522 | MSV98322 |
| 工作介质 | 经40微米过滤的空气 | ||
| 位通数 | 二位三通 | 二位五通 | 二位三通 |
| 压力范围 | 0～0.8MPa | 0～0.8MPa | 0～0.8MPa |
| 温度范围 | -20～70℃ | ||
| 有效截面积 | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 16mm²(CV=0.89) |
| 接管口径 | G1/8” | G1/4” | G1/4” |

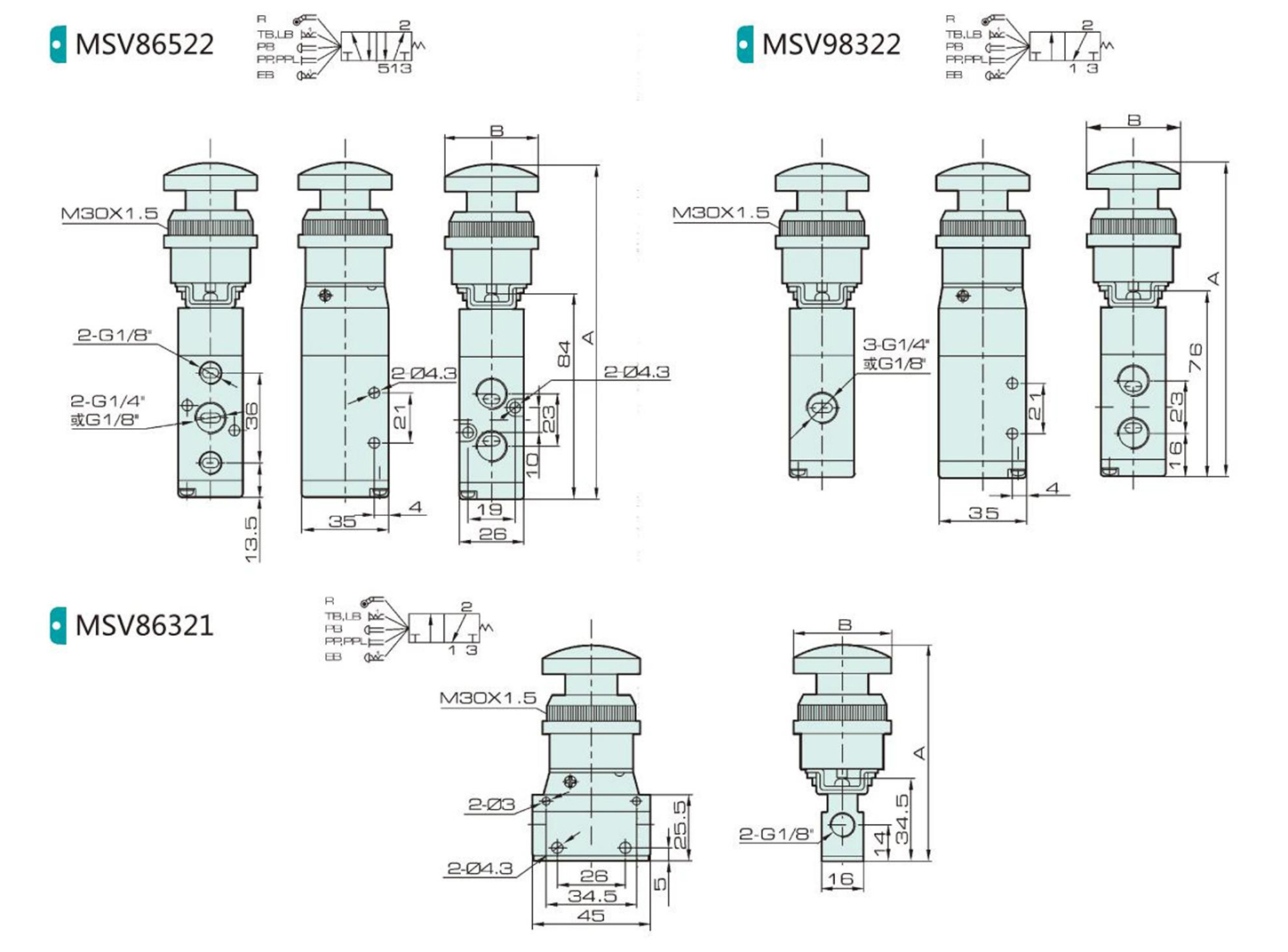

外形尺寸
尺寸表

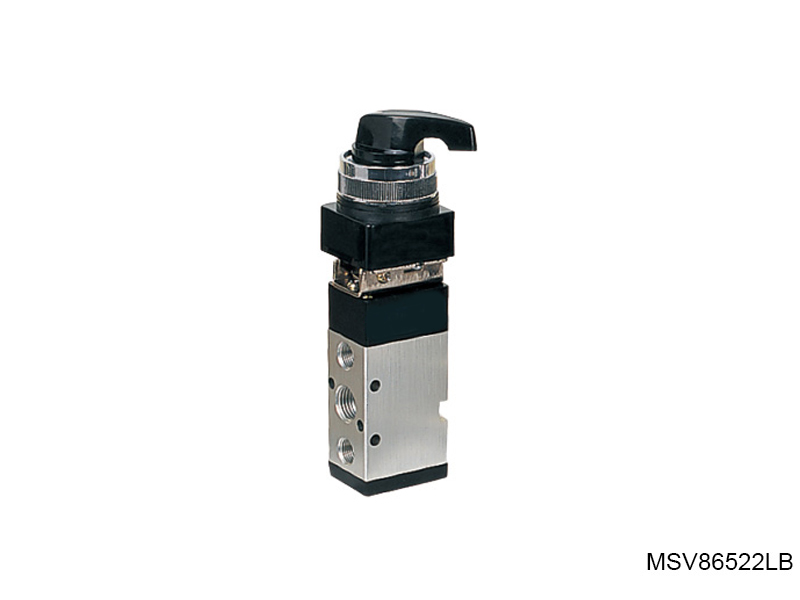

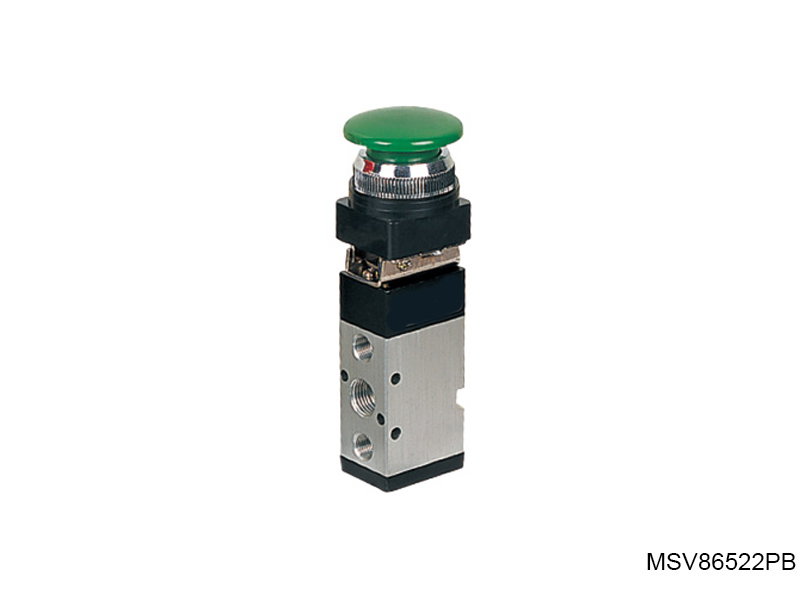

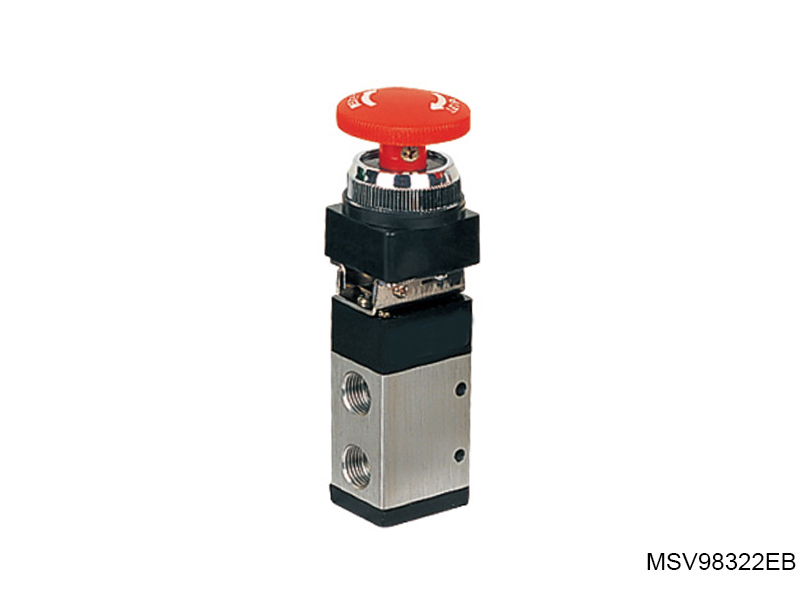

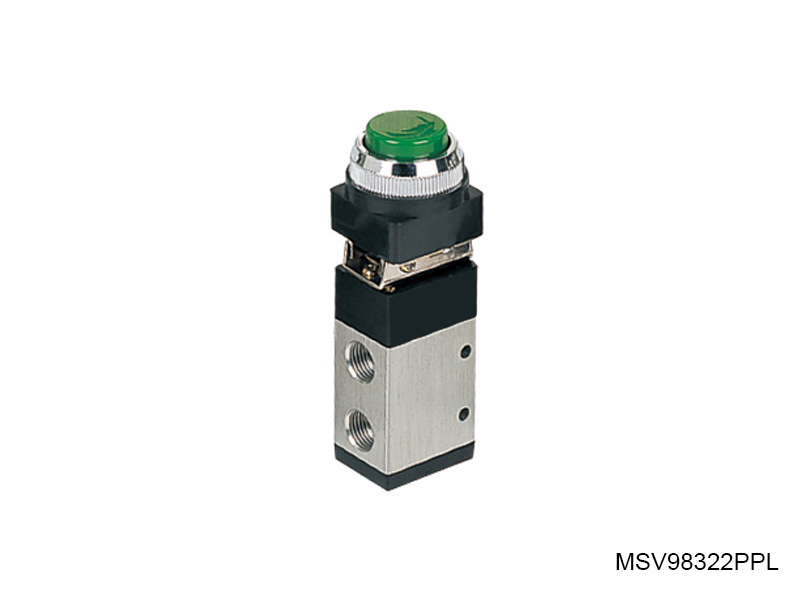

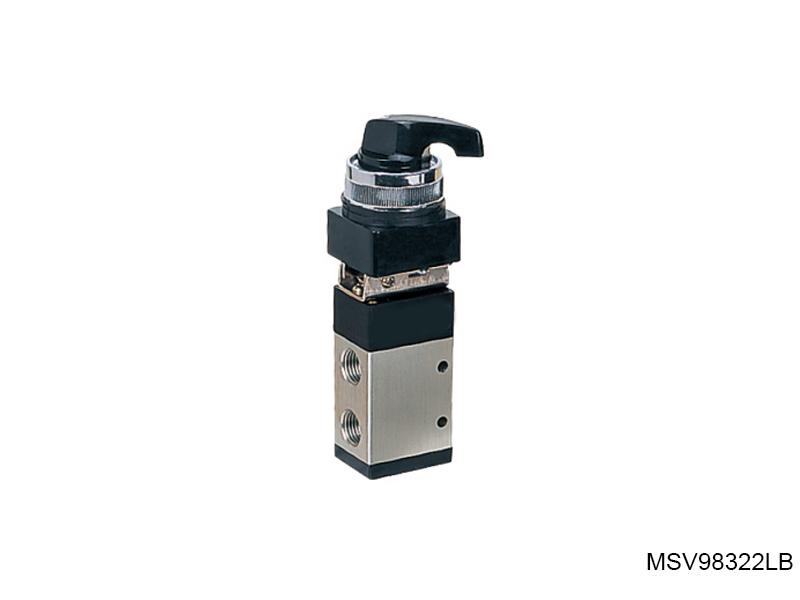

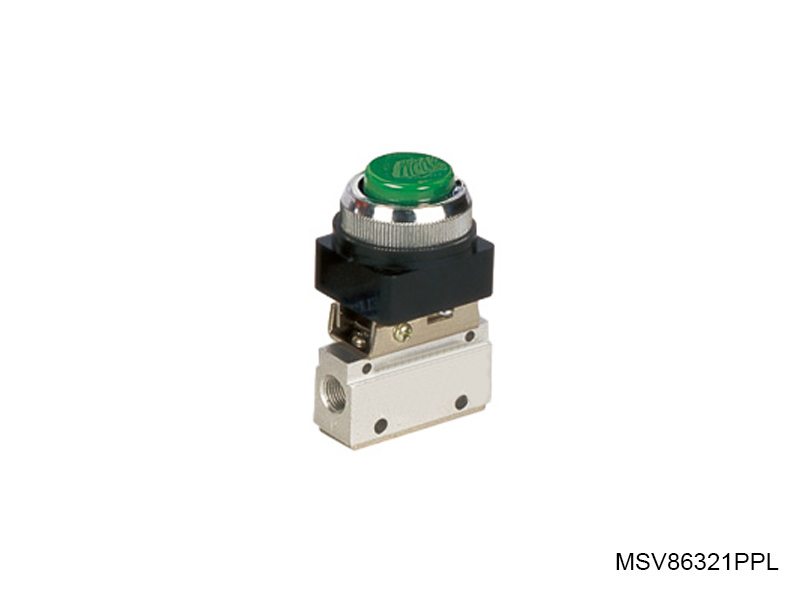

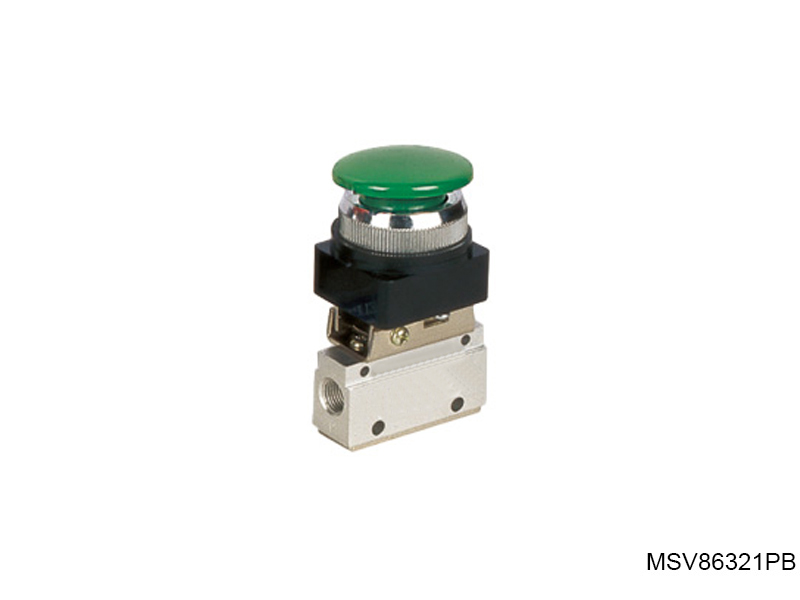

| 系列 | 符号/型号 | PP | PPL | LB | TB | EB | PB | R |
| MSV86522 | A | 114 | 119 | 133 | 136.5 | 134 | 131 | 107.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV98322 | A | 106 | 111 | 125 | 129.5 | 126 | 123 | 99.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 | |
| MSV86321 | A | 66 | 71 | 85 | 88.5 | 86 | 83 | 59.5 |
| B | 39.5 | 24.5 | 26.5 | 36.5 | 39.5 | 37.5 | 42.5 |
