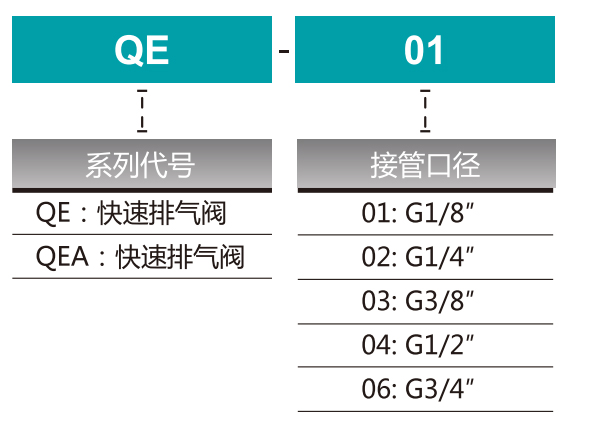

订购码

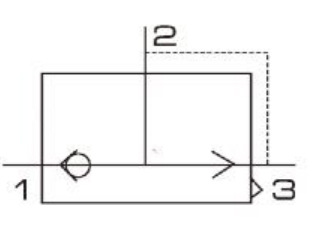

图形符号
规格参数
| 型号 | QE-01 | QE-02 | QE-03 | QE-04 | QE-06 |
| 接管口径 | G1/8” | G1/4” | G3/8” | G1/2” | G3/4” |
| 有效截面积 | 16mm² | 27.5mm² | 28mm² | 71mm² | 72. mm² |
| 工作介质 | 空气 | ||||
| 使用压力范围 | 0～1.0MPa | ||||
| 使用温度范围 | -20～70℃ | ||||

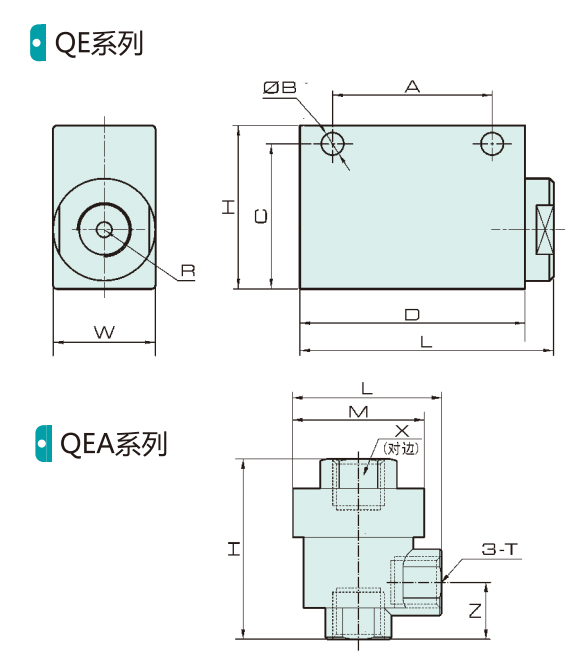

外形尺寸
尺寸表
|
型号/符号 |
R |
口径 |
L |
W |
H |
A |
B |
C |
D |
|
QE -01 |
G1/4 |
GL/8 |
46 |
20 |
32 |
30 |
4.3 |
27 |
40 |
|
QE-02 |
G3/8 |
GL/4 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-03 |
G3/8 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-04 |
GL/2 |
G3/8 |
52.3 |
28 |
36 |
- |
- |
- |
48 |
|
QE-06 |
G3/4 |
G3/4 |
98 |
38 |
64 |
60 |
8.5 |
51 |
90 |
|
型号/符号 |
T |
H |
L |
M |
N |
X |
|
QEA-01 |
G1/8 |
40 |
32 |
28 |
12 |
14 |
|
QEA-02 |
G1/4 |
45 |
38 |
33.5 |
14 |
17 |
|
QEA-03 |
G3/8 |
55.5 |
47 |
39 |
15.5 |
22 |
|
QEA-04 |
G1/2 |
62 |
55 |
43 |
22 |
24 |
|
QEA-06 |
G3/4 |
91 |
66 |
53 |
35 |
34 |
