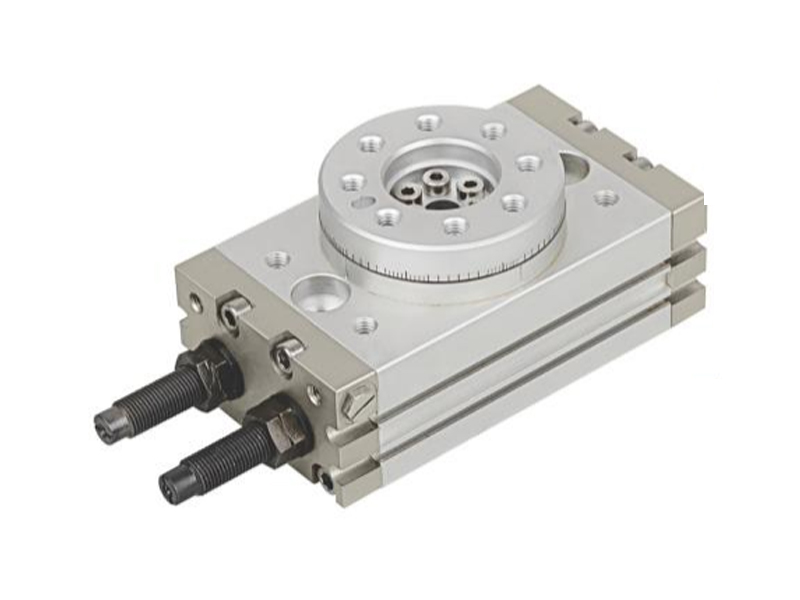

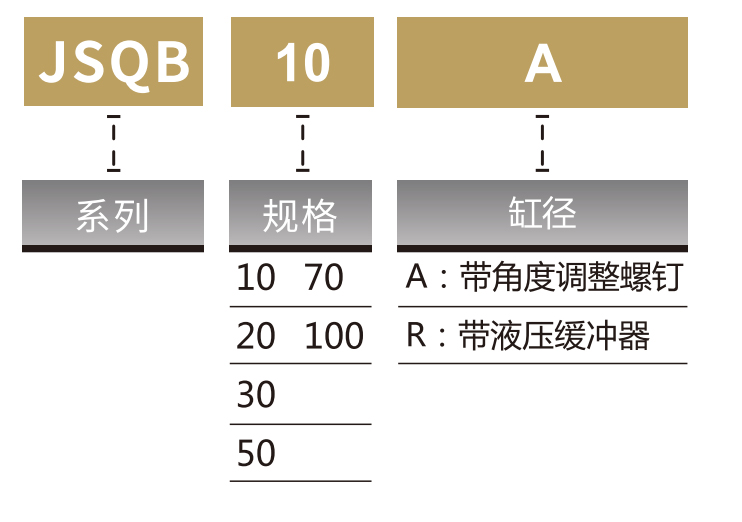

订购码
行程/磁性开关型号表
|
代号 |
*磁性开关型号 |
|
10 |
JEL-07D |
|
20 |
|
|
30 |
|
|
50 |
|
|
70 |
|
|
100 |
[注]磁性开关请参照P173
规格参数
| 规格 | 10 | 20 | 30 | 50 | 70 | 100 | |
| 使用流体 | 空气(不给油) | ||||||
| 动作方式 | 双作用 | ||||||
| 使用压力范围 | 0.15～0.7MPa | ||||||
| 环境及流体温度 | -10~60℃(但未冻结) | ||||||
| 缓冲 | 橡胶缓冲(标准)/液压缓冲器(可选) | ||||||
| 允许功能 | 带角度调整螺钉 | 0.007J | 0025J | 0.048J | 0.081J | 0.24J | 0.32J |
| 带液压缓冲器 | 0.039J | 0.116J | 0.294J | 1.1J | 1.6J | ||
| 角度调节范围 | 0~190° | ||||||
| 最大摆动角度 | 190° | ||||||
| 稳定摇动时间 范围 接管口径 |
带角度调整螺钉 | 0.2~1.0s/90° | 0.2~1.5s/90° | 0.2~2.0s/90° | |||
| 带液压缓冲器 | 0.2~0.7s/90° | 0.2~1.0s/90° | |||||
| M5x0.8 | 1/8 | ||||||
注)：最高使用压力是受液压缓冲器的最大允许负载重限制。

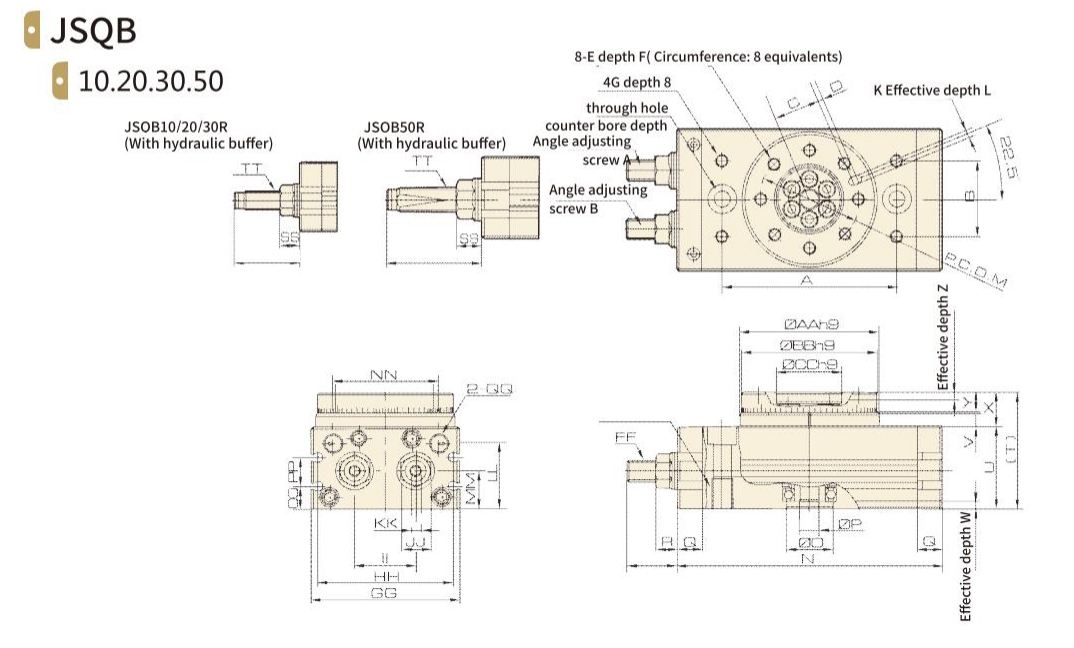

外形尺寸
尺寸表
| 型号 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |
| JSQB10□ | 60 | 27 | 15 | 2 | M5x0.8 | 8 | M5x0.8 | 6.8 | 11 | 6.5 | 3H9 | 3.5 | 32 | 92 | 15H9 | 5 | 9.5 | 8.6 | 17.7 | 47 | 34 | 4.5 | 3 | 13 | 8 | 4 |
| JSQB20□ | 76 | 34 | 20.5 | 2 | M6x1 | 10 | M6x1 | 8.6 | 14 | 8.5 | 4H9 | 4.5 | 43 | 117 | 17H9 | 9 | 12 | 10.6 | 25 | 54 | 37 | 6.5 | 2.5 | 17 | 10 | 6 |
| JSQB30□ | 84 | 37 | 23 | 2 | M6x1 | 10 | M6x1 | 8.6 | 14 | 8.5 | 4H9 | 4.5 | 48 | 127 | 22H9 | 9 | 12 | 10.6 | 25 | 57 | 40 | 6.5 | 3 | 17 | 10 | 4.5 |
| JSQB50□ | 100 | 50 | 26.5 | 2 | M8x1.25 | 12 | M8x1.25 | 10.5 | 18 | 10.5 | 5H9 | 5.5 | 55 | 152 | 26H9 | 10 | 15.5 | 14 | 31.4 | 66 | 46 | 7.5 | 3 | 20 | 12 | 5 |
| 型号 | AA | BB | CC | DD | EE | FF | GG | HH | IⅡ | JJ | KK | LL | MM | NN | OO | PP | RR | SS | TT | 液压缓冲器型号 | |
| JSQB10□ | 46 | 45 | 20 | M8x1.25 | 12 | M8x1 | 50 | 45 | 20 | 12 | 4 | 27.8 | 15.5 | 34.5 | 9 | 13 | M5x0.8 | 31.5 | 8.6 | M8x1 | RBA0805-X692 |
| JSQB20□ | 61 | 60 | 28 | M10x1.5 | 15 | M10x1 | 65 | 60 | 27.5 | 14 | 5 | 28.8 | 16 | 51 | 10 | 12 | M5x0.8 | 34.7 | 10.6 | M10x1 | RBA1006-X692 |
| JSQB30□ | 67 | 65 | 32 | M10x1.5 | 15 | M10x1 | 70 | 65 | 29 | 14 | 5 | 32 | 18.5 | 50 | 11.5 | 14 | 1/8 | 34.7 | 10.6 | M10x1 | RBA1006-X692 |
| JSQB50□ | 77 | 75 | 35 | M12x1.75 | 18 | M14x1.5 | 80 | 75 | 38 | 19 | 6 | 37.5 | 22 | 63 | 14.5 | 15 | 1/8 | 51.7 | 14 | M14x1.5 | RBA1411-X692 |
注：最大的尺寸是在摆动角度在最大时(190°)
