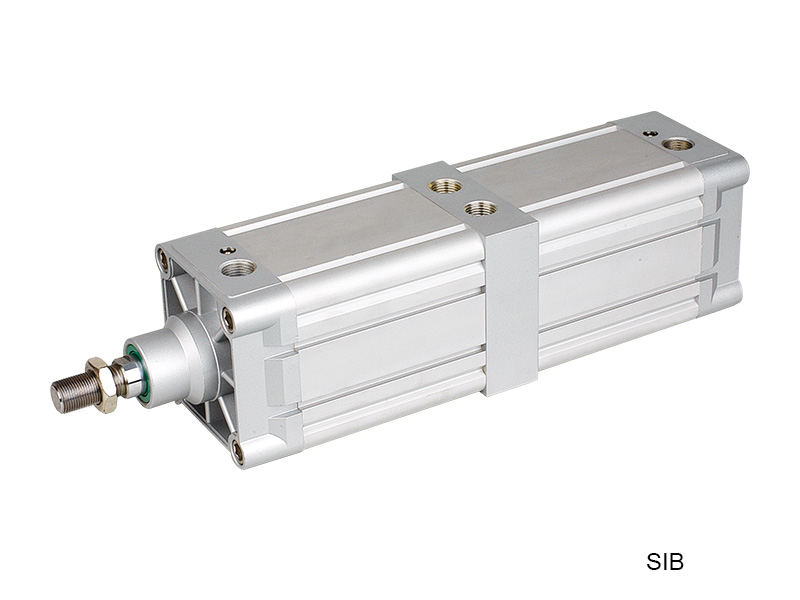

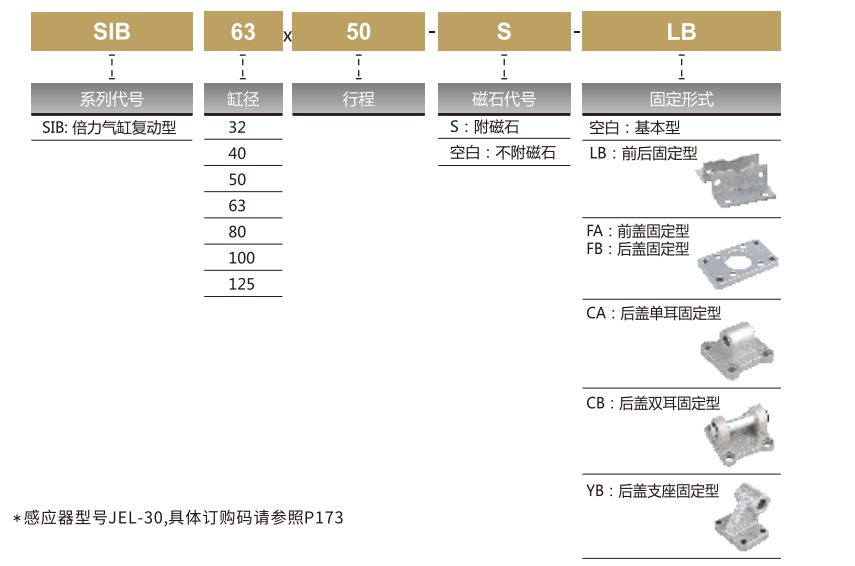

订购码
规格
| 内径(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| 动作形式 | 复动型 | ||||||
| 工作介质 | 空气 | ||||||
| 固定型式 | 基本型/FA型/FB型/CA型/CB型/LB型/YB型 | ||||||
| 使用压力范围 | 1～9.0kgf/cm² | ||||||
| 保证耐压力 | 13.5kgf/cm² | ||||||
| 使用温度范围 | -20～80℃ | ||||||
| 使用速度范围 | 50～500mm/s | ||||||
| 缓冲型式 | 可调缓冲 | ||||||
| 缓冲行程 | 20mm | 26mm | |||||
| 接管口径 | G1/8” | G1/4” | G3/8” | G1/2” | |||

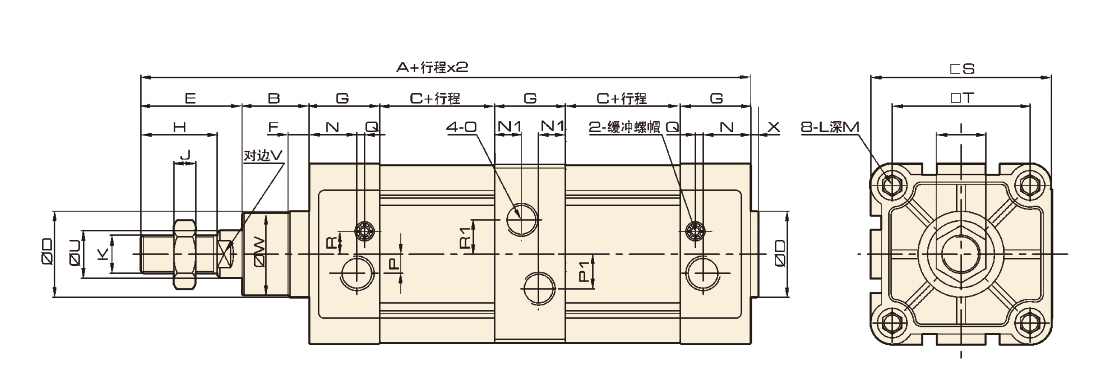

外形尺寸
尺寸表
| 型号/符号 | A | B | C | D | E | F | G | H | I | J | K | L | M | |
| 32 | 214 | 16 | 43 | 30 | 33 | 10 | 25 | 22 | 17 | 6 | M10X1.25 | M6 | 9.5 | |
| 40 | 236.5 | 20 | 45 | 35 | 34 | 10 | 29.5 | 24 | 17 | 7 | M12X1.25 | M6 | 9.5 | |
| 50 | 252 | 27 | 41 | 40 | 42.5 | 10 | 32 | 32 | 23 | 8 | M16X1.5 | M6 | 9.5 | |
| 63 | 278 | 26 | 49 | 45 | 42 | 10 | 36 | 32 | 23 | 8 | M16X1.5 | M8 | 9.5 | |
| 80 | 308 | 35 | 52 | 45 | 53 | 10 | 37 | 40 | 26 | 10 | M20X1.5 | M10 | 11.5 | |
| 100 | 339 | 40 | 59 | 55 | 52 | 10 | 39 | 40 | 26 | 10 | M20X1.5 | M10 | 11.5 | |
| 125 | 399 | 46.5 | 72 | 60 | 71 | 10 | 43.5 | 54 | 40 | 10 | M27X2 | M12 | 15.5 | |
| 型号/符号 | N | N1 | O | P | P1 | Q | R | R1 | S | T | U | V | W | X |
| 32 | 15 | 7.5 | G1/8 | 5 | 6 | 3 | 6.5 | 6 | 45 | 32.5 | 12 | 10 | 28 | 4 |
| 40 | 17.5 | 9.5 | G1/4 | 7 | 7.5 | 3 | 7 | 7.5 | 52 | 38 | 16 | 13 | 33 | 4 |
| 50 | 20 | 16 | G1/4 | 7 | 10.5 | 3 | 9 | 10.5 | 65 | 46.5 | 20 | 17 | 38 | 4 |
| 63 | 22 | 13 | G3/8 | 8 | 13 | 5 | 9 | 13 | 76 | 56.5 | 20 | 17 | 38 | 4 |
| 80 | 23 | 14 | G3/8 | 10 | 18 | 5 | 12 | 18 | 94 | 72 | 25 | 22 | 43.5 | 4 |
| 100 | 26 | 19.5 | G1/2 | 10 | 20 | 5 | 14 | 20 | 112 | 89 | 25 | 22 | 47 | 4 |
| 125 | 29 | 21.75 | G1/2 | 10 | 30 | 5 | 14 | 30 | 134 | 110 | 32 | 27 | 53 | 6 |
