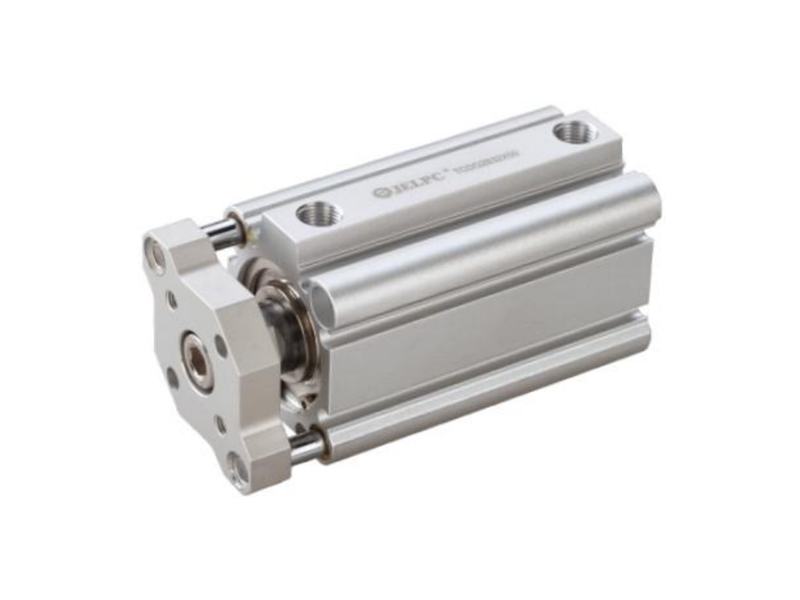

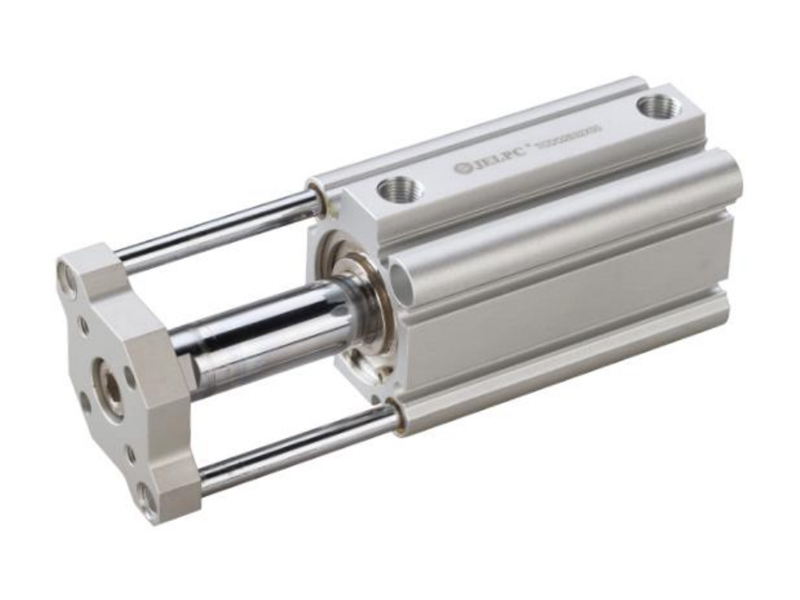

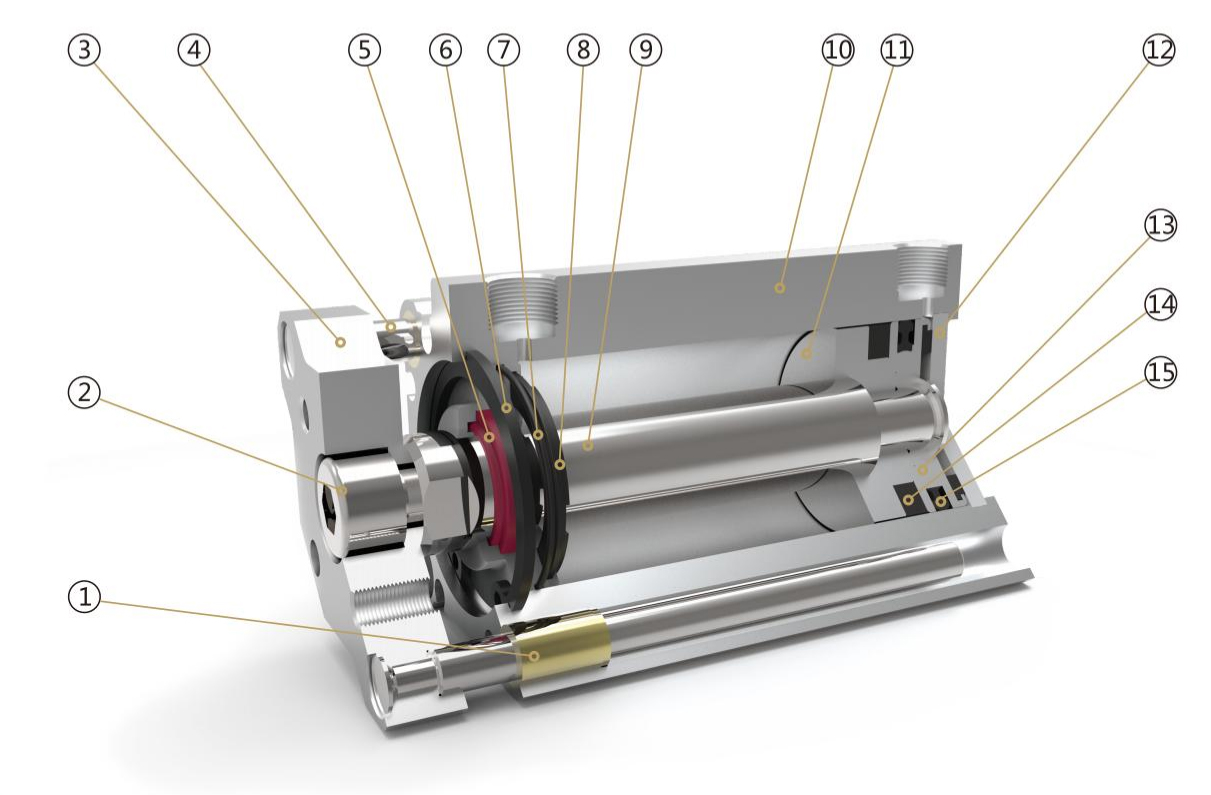

内部结构图
零件表
| 编号 | 名称 | 编号 | 名称 |
| 1 | 铜套 | 9 | 活塞杆 |
| 2 | 内六角螺钉 | 10 | 缸筒 |
| 3 | 固定板 | 11 | 磁铁座 |
| 4 | 导杆 | 12 | 后盖 |
| 5 | 防尘圈 | 13 | 活塞 |
| 6 | 孔用弹性挡圈 | 14 | 磁石 |
| 7 | O形圈 | 15 | C形圈 |
| 8 | 防撞垫 |

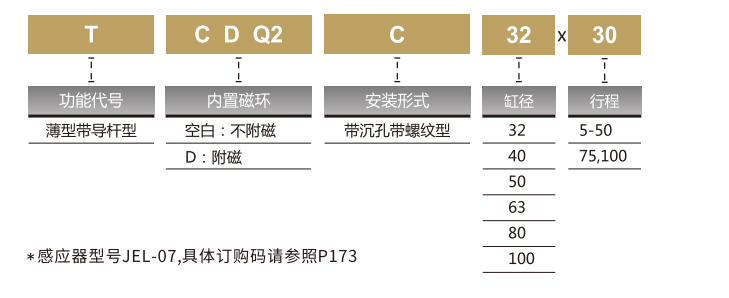

订购码
规格参数
| 缸径(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| 动作形式 | 复动型 | ||||||
| 工作介质 | 空气 | ||||||
| 使用压力范围 | 复动型 | 0.1～1.0MPa | |||||
| 保证耐压力 | 1.5MPa | ||||||
| 使用温度范围 | -20～80℃ | ||||||
| 使用速度范围 | 复动型 | 30～500mm/s | 30～350mm/s | 30～250mm/s | |||
| 接管口径 | G1/8 | G1/4 | G3/8 | ||||

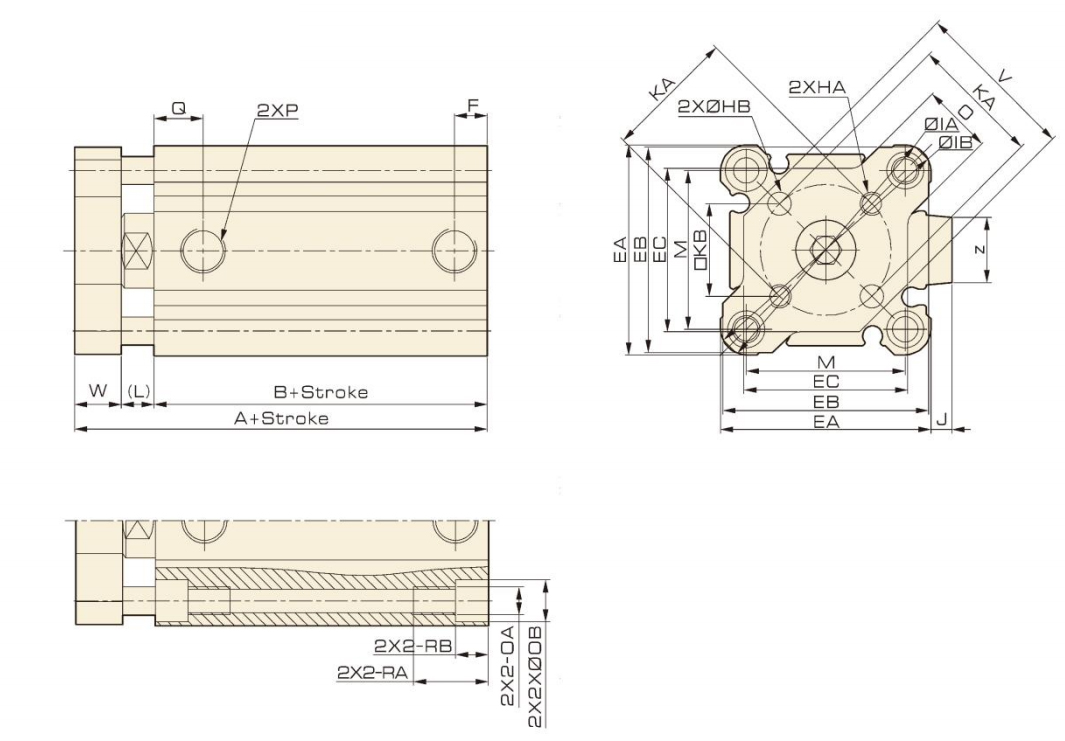

外形尺寸
尺寸表
|
缸径/符号 |
行程范围(mm) |
不附磁 |
附磁 |
EA |
EB |
EC |
||||||||||||
|
A |
B |
F |
Q |
P |
A |
B |
F |
Q |
P |
|||||||||
|
- |
IN |
TF |
- |
IN |
TF |
|||||||||||||
|
32 |
5 |
40 |
23 |
5.5 |
11.5 |
M5X0.8 |
- |
- |
50 |
33 |
7.5 |
10.5 |
G1/8 |
PT1/8 |
NPT1/8 |
45 |
44 |
35 |
|
10-50 |
7.5 |
10.5 |
G1/8 |
PT1/8 |
NPT1/8 |
|||||||||||||
|
75- 100 |
50 |
33 |
||||||||||||||||
|
40 |
5-50 |
46.5 |
29.5 |
8 |
11 |
G1/8 |
PT1/8 |
NPT1/8 |
56.5 |
39.5 |
8 |
11 |
G1/8 |
PT1/8 |
NPT1/8 |
52 |
51.5 |
38 |
|
75-100 |
56.5 |
39.5 |
||||||||||||||||
|
50 |
5-50 |
50.5 |
30.5 |
10.5 |
10.5 |
G1/4 |
PT1/4 |
NPT1/4 |
60.5 |
40.5 |
10.5 |
10.5 |
Gl/4 |
PT1/4 |
NPT1/4 |
62 |
61 |
48.5 |
|
75-100 |
60.5 |
40.5 |
||||||||||||||||
|
63 |
5-50 |
56 |
36 |
10.5 |
15 |
G1/4 |
PT1/4 |
NPT1/4 |
66 |
46 |
10.5 |
15 |
Gl/4 |
PT1/4 |
NPT1/4 |
77 |
76 |
59 |
|
75-100 |
66 |
46 |
||||||||||||||||
|
80 |
5-50 |
67.5 |
43.5 |
12.5 |
16 |
G3/8 |
PT3/8 |
NPT3/8 |
77.5 |
53.5 |
12.5 |
15 |
G3/8 |
PT3/8 |
NPT3/8 |
98 |
97 |
75 |
|
75-100 |
77.5 |
53.5 |
||||||||||||||||
|
100 |
5-50 |
79 |
53 |
13 |
23 |
G3/8 |
PT3/8 |
NPT3/8 |
89 |
63 |
13 |
23 |
G3/8 |
PT3/8 |
NPT3/8 |
117 |
116 |
92.5 |
|
75-100 |
89 |
63 |
||||||||||||||||
|
缸径/符号 |
HA |
OA |
HB |
IA |
IB |
J |
KA |
KB |
L |
M |
N |
OB |
RA |
RB |
V |
W |
Z |
O |
|
32 |
M5X0.8 |
M6X1.0 |
5+0.2 0 |
60 |
58.5 |
4.5 |
28±0.02 |
19.8 |
7 |
34 |
5.5 |
9 |
17 |
7 |
35 |
10 |
14 |
15 |
|
40 |
M5X0.8 |
M6X1.0 |
5+0.2 0 |
69 |
67.5 |
5 |
33±0.02 |
23.3 |
7 |
40 |
5.5 |
9 |
17 |
7 |
42 |
10 |
14 |
15 |
|
50 |
M6X1.0 |
M8X1.25 |
6+0.2 0 |
86 |
84.5 |
7 |
42±0.02 |
29.7 |
8 |
50 |
6.6 |
11 |
22 |
8 |
54.5 |
12 |
19 |
16 |
|
63 |
M6X1.0 |
M10X1.5 |
6+0.2 0 |
103 |
100 |
7 |
50±0.02 |
35.4 |
8 |
60 |
9 |
14 |
28.5 |
10.5 |
68 |
12 |
19 |
19 |
|
80 |
M8X1.25 |
M12X1.75 |
8+0.2 0 |
132 |
129 |
6 |
65±0.02 |
46 |
10 |
77 |
11 |
17.5 |
35.5 |
13.5 |
86 |
14 |
25 |
22 |
|
100 |
M10X1.5 |
M12X1.75 |
10+0.2 0 |
156 |
153 |
6.5 |
80±0.02 |
56.6 |
10 |
94 |
11 |
17 |
35.5 |
13.5 |
108 |
16 |
25 |
25 |
