订购码
图形符号
规格参数
|
型号 |
精密型 |
普通型 |
||||||
|

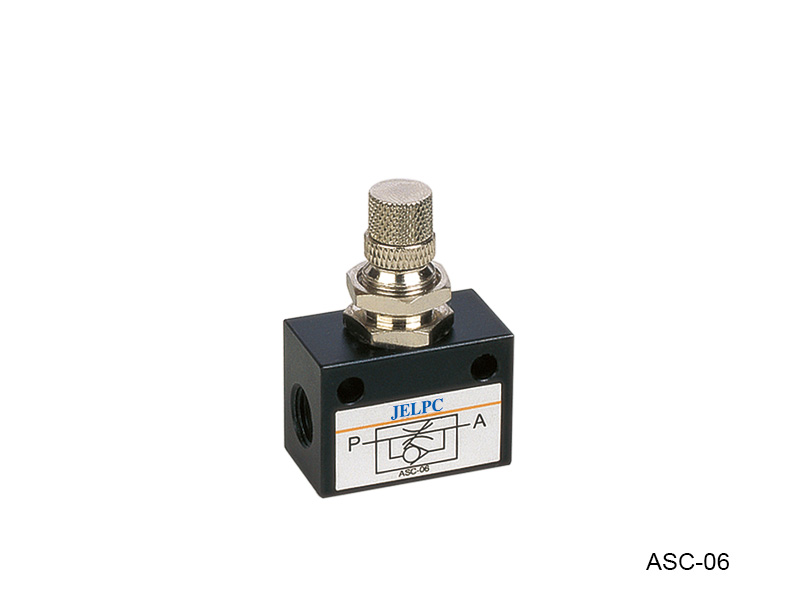

ASC-06 |
ASC-08 |
ASC-10 |

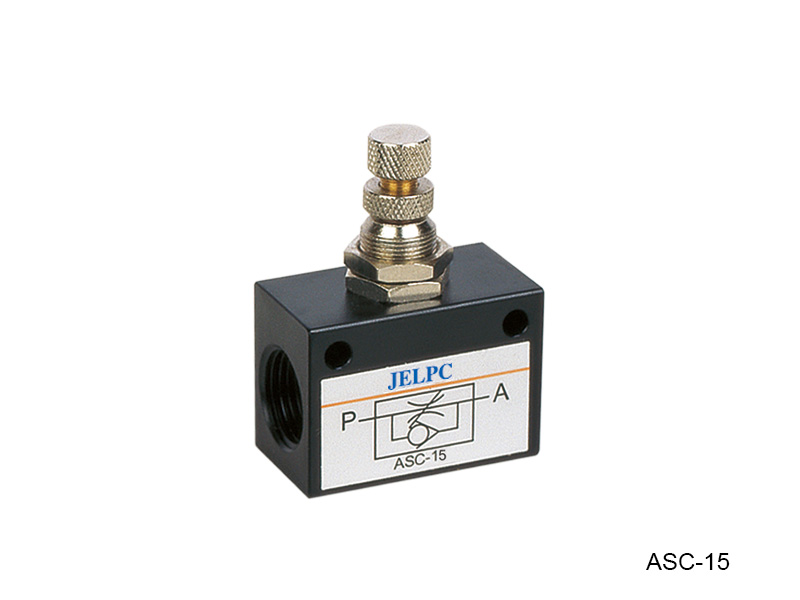

ASC-15 |
RE-01 |
RE-02 |
RE-03 |

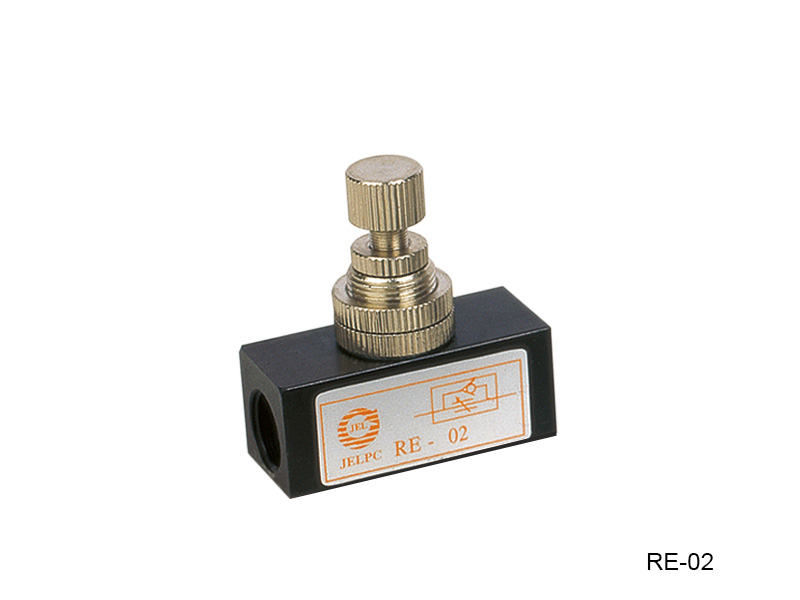

RE-04 |
|
|
接管口径 |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
|
工作介质 |
空气 |
|||||||
|
使用压力范围 |
0～0.95MPa |
|||||||
|
使用温度范围 |
-20～70℃ |
|||||||
*ASC-08B安装尺寸符合NUMAR标准，用于气动执行器的速度控制。
外形尺寸
尺寸表
|
符号/型号 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
ASC-06 |
22 |
32 |
Gl/8 |
22 |
27 |
4.3 |
49.7 |
56.5 |
M6X0.5 |
M12X0.75 |
12 |
18 |
|
ASC-08 |
26 |
36 |
Gl/4 |
22 |
27 |
4.3 |
49.7 |
56.5 |
M6X0.5 |
M12X0.75 |
12 |
18 |
|
ASC-10 |
28 |
40 |
G3/8 |
25 |
30 |
4.3 |
52.7 |
59 5 |
M6X0.5 |
M12X0 75 |
13 |
22 |
|
ASC-15 |
28 |
40 |
Gl/2 |
30 |
35 |
4.3 |
58.7 |
65.5 |
M6X0.5 |
M12X0.75 |
13.5 |
26 |
外形尺寸
尺寸表
|
型号/符号 |
A |
B |
C |
D |
E |
F | G |
|
RE-01 |
45 |
19 |
43 |
50 |
Φ19 |
M14×1 |
G1/8 |
|
RE-02 |
45 |
19 |
43 |
50 |
Φ19 |
M14×1 |
G1/4 |
|
RE-03 |
55 |
25 |
55 |
62 |
Φ25 |
M18×1 |
G3/8 |
|
RE-04 |
55 |
25 |
55 |
62 |
Φ25 |
M18×1 |
G1/2 |
